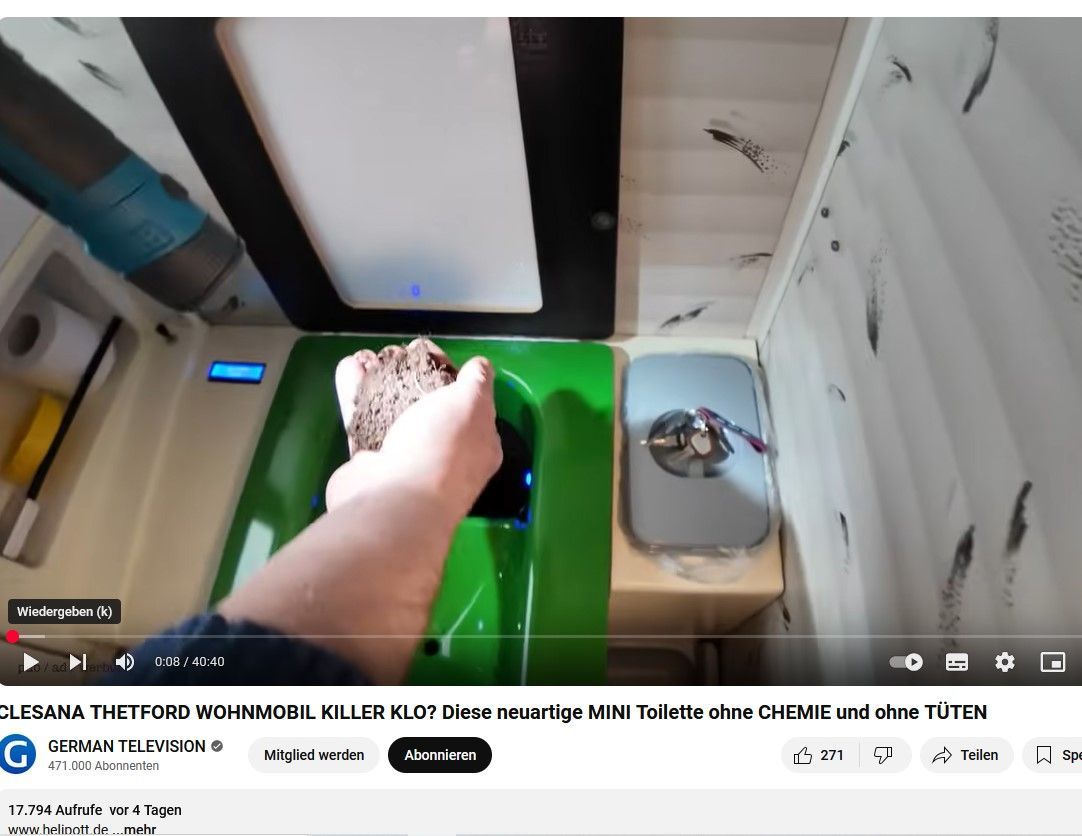

Reports and blogs

External reports, as well as articles and reports from trade fair visits are available here


Want to stay up to date? Follow us on Instagram

Own BLOGS and TUTORIALS

The installation

This section is all about installation

The installation options are as versatile as HELIPOTT itself.


HELIPOTT installation partner

Germany by zip code:

boXmanufacturer

Bremer Street 24/26
27367 Sottrum
Tel.: 49 4264 836770
sales@boxmanufaktur.com
www.boxmanufaktur.com



VanWeekend GmbH
Lachener Street 96
67433 Neustadt an der Weinstraße
Tel.: 49 6321 1865344
info@van-weekend.de
www.van-weekend.the


Woelcke GmbH&Co KG
Frankenstraße 2
71296 Heimsheim
Tel.: 49 7033 390994
info@woelcke.de
www.woelcke.de


SüdBadenVan GmbH
Im Stöckacker 18
79224 Umkirch
Tel.: 49 7665 947178-10
info@SuedBadenVan.de
www.SuedBadenVan.de


Rustikab GmbH & Co. KG
Industriestraße 35-37
87448 Waltenhofen-Hegge
Phone: 49 831 74609626
info@rustikab.de
www.rustikab.de



camper2travel GmbH & Co. KG
Wohnmobile
Helfensteinerstraße 1
89143 Blaubeuren
Mobil: 01602881051
info@camper2travel.de
www.camper2travel.de


PadoMobil GmbH
Friedrich-List-Straße 4
89250 Senden
Tel.: 49 7307 800 735
info@padomobil.de
www.padomobil.de


Batari Fahrzeugbau
Vogteistraße 15
89446 Ziertheim-Dattenhausen

Tel.: 49 9076 9180267
info@batari-fahrzeugbau.de

www.batari-fahrzeugbau.de


Orthos Reisemobile
Weyhausenstraße 7
91077 Neunkirchen am Brand
Tel.: 49 9134 70878-0
info@orthos-mobile.de
www.orthos-mobile.de


PickUpBack.com

Inhaber Goran Gale
Vogelherd 8
891236 Alfeld / Mittelfranken
Tel.: 49 9157 927639
team@pickupback.com
www.pickupback.com






Installation partner Switzerlandby zip code:

Cocoon Vans GmbH
Langgrabenstrasse 4a
CH – 7320 Sargans
Tel. and Whatsapp: 41(0)77 261 1223
info@cocoonvans.com
www.cocoonvans.com


Camper worlds
Ratihard 40
CH – 8253 Diessenhofen
Phone: 41(0)79 437 56 38
Whatsapp: 41(0)79 437 56 38
hallo@camperwelten.ch
www.camperwelten.ch




Installation partner Austria by zip code:

Easy camping eU
Harald Böhm
Pyrachstrasse 33b
A- 4400 Steyr
Phone: 43 676 6123418
info@einfach-campen.eu
www.einfach-campen.eu


Multimobil - vehicle construction of the special class
Dambachstraße 35/1
A-4451 Garsten
Phone: 43 664 4440023
office@multimobil.at
www.multimobil.at


Easygoinc.GmbH
Reitschulgasse 3-5
A- 4600 Wels
Tel.: 43 7242 932 814-0
contact@easygoinc.com
www.easygoinc.com

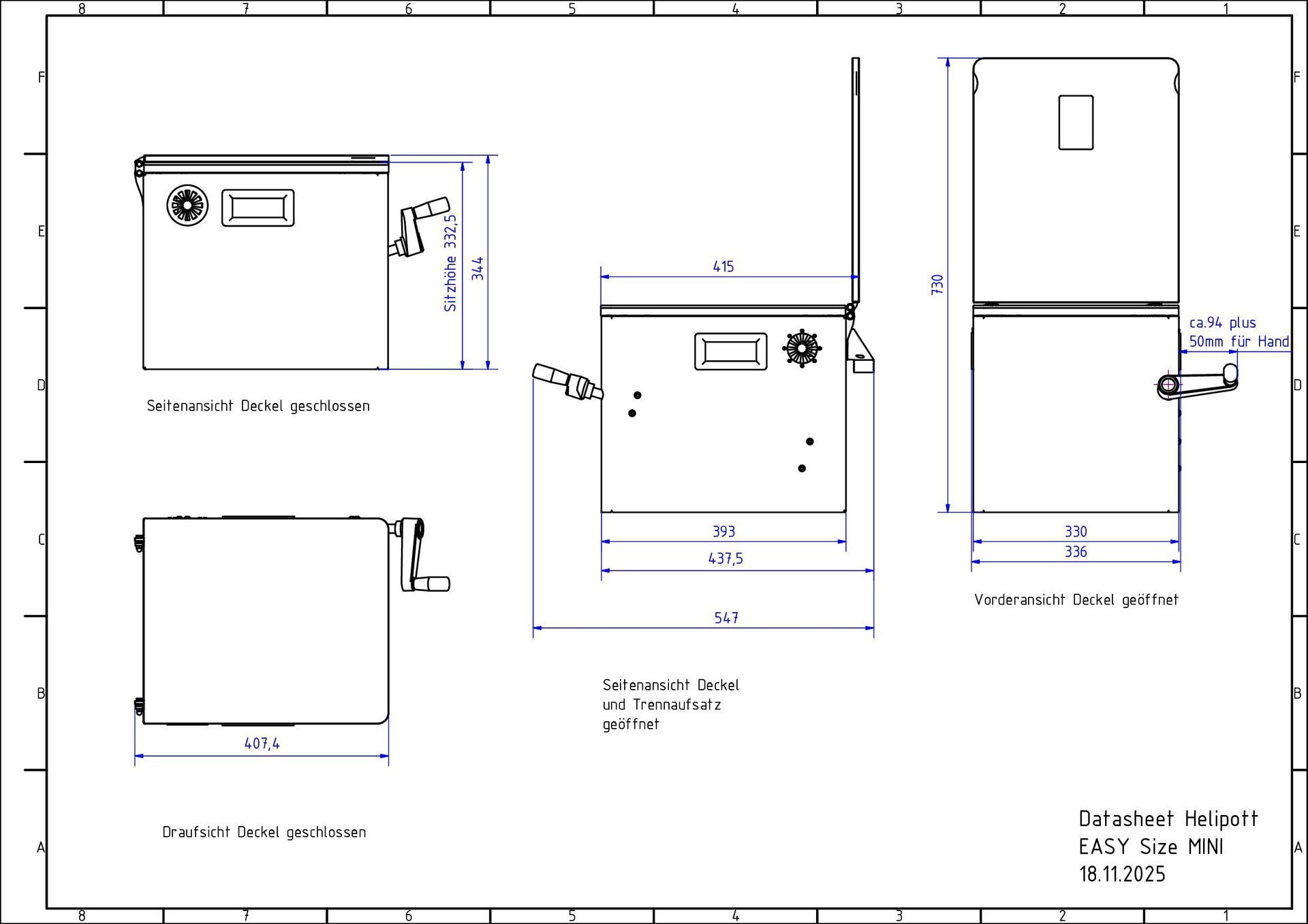

Technical information

All the information you need to install your helipot can be found in this section.

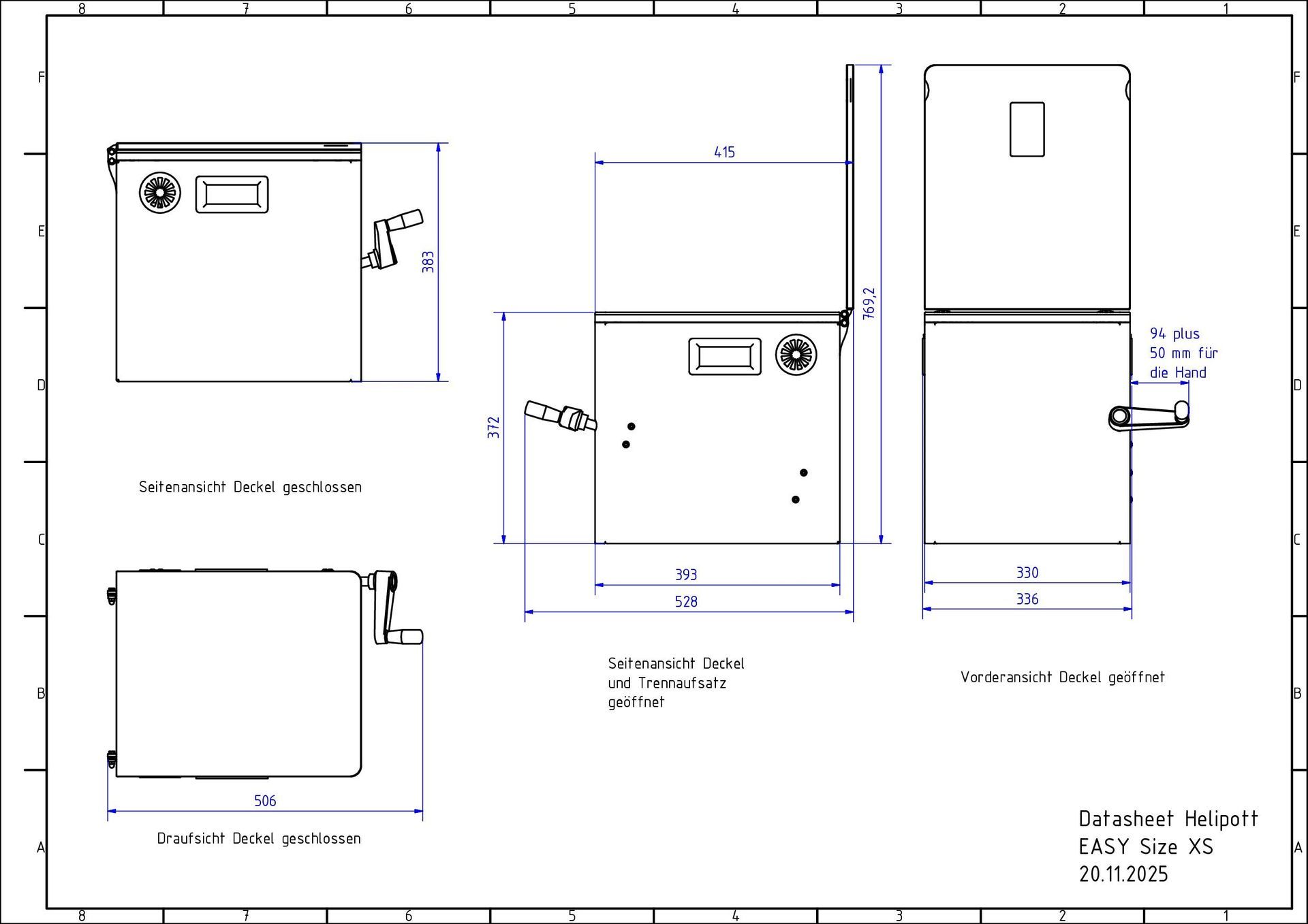

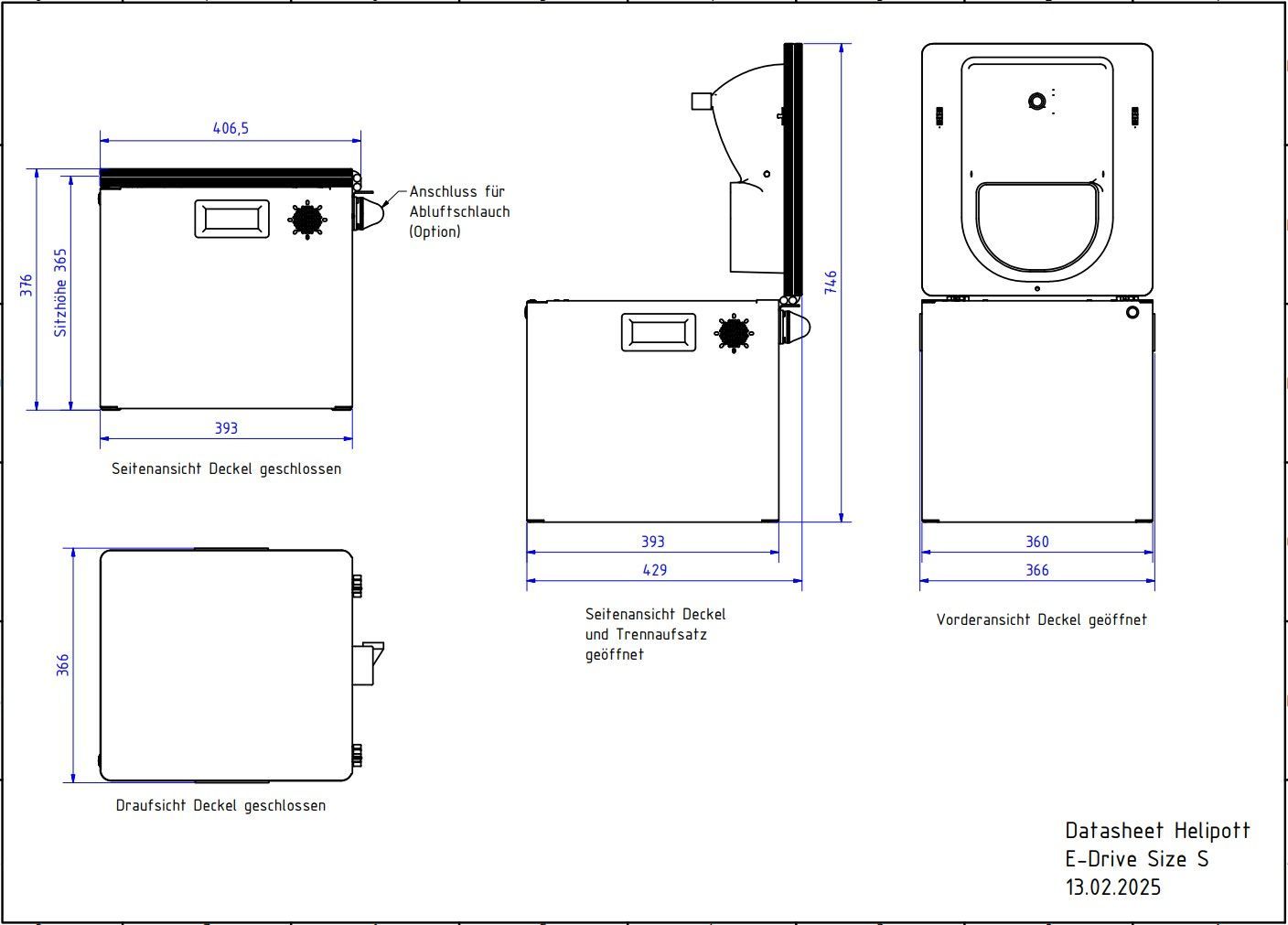

S

External dimensions W/H/D mm

370/380/410

Weight kg

E-Drive: 10.5-12.6

Urine tank: 6L

Substrate volume agitator: 6L

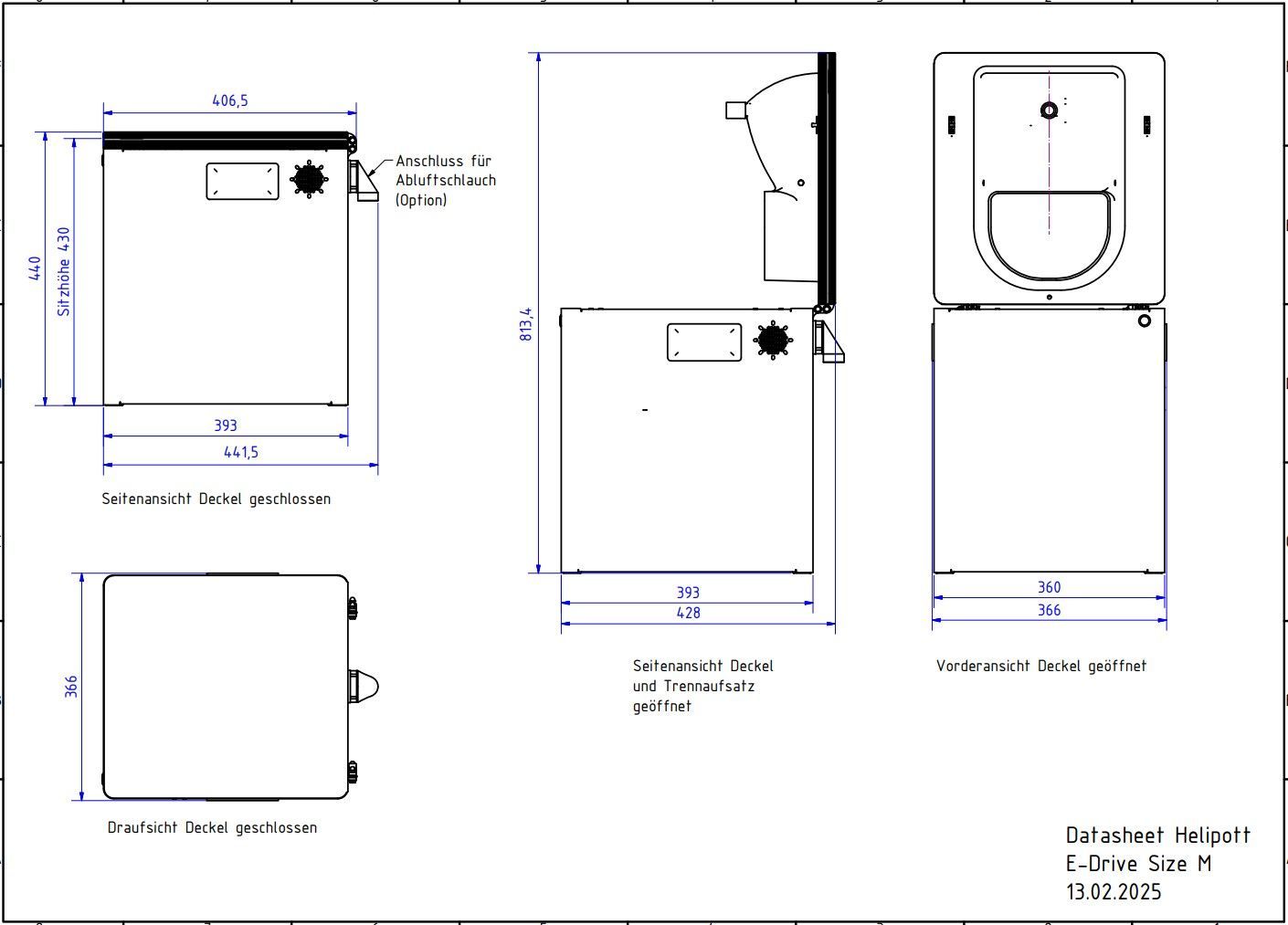

M

External dimensions W/H/D mm

370/446/410

Weight kg

E-Drive: 10.5-13.5

Urine tank: 10L

Substrate volume agitator: 6L


L

Outside dimensions B/H/T mm

430/446/468

Weight kg

E-Drive: 15.9-16.4

Urine tank: 10L

Substrate volume agitator: 12L


Let's go

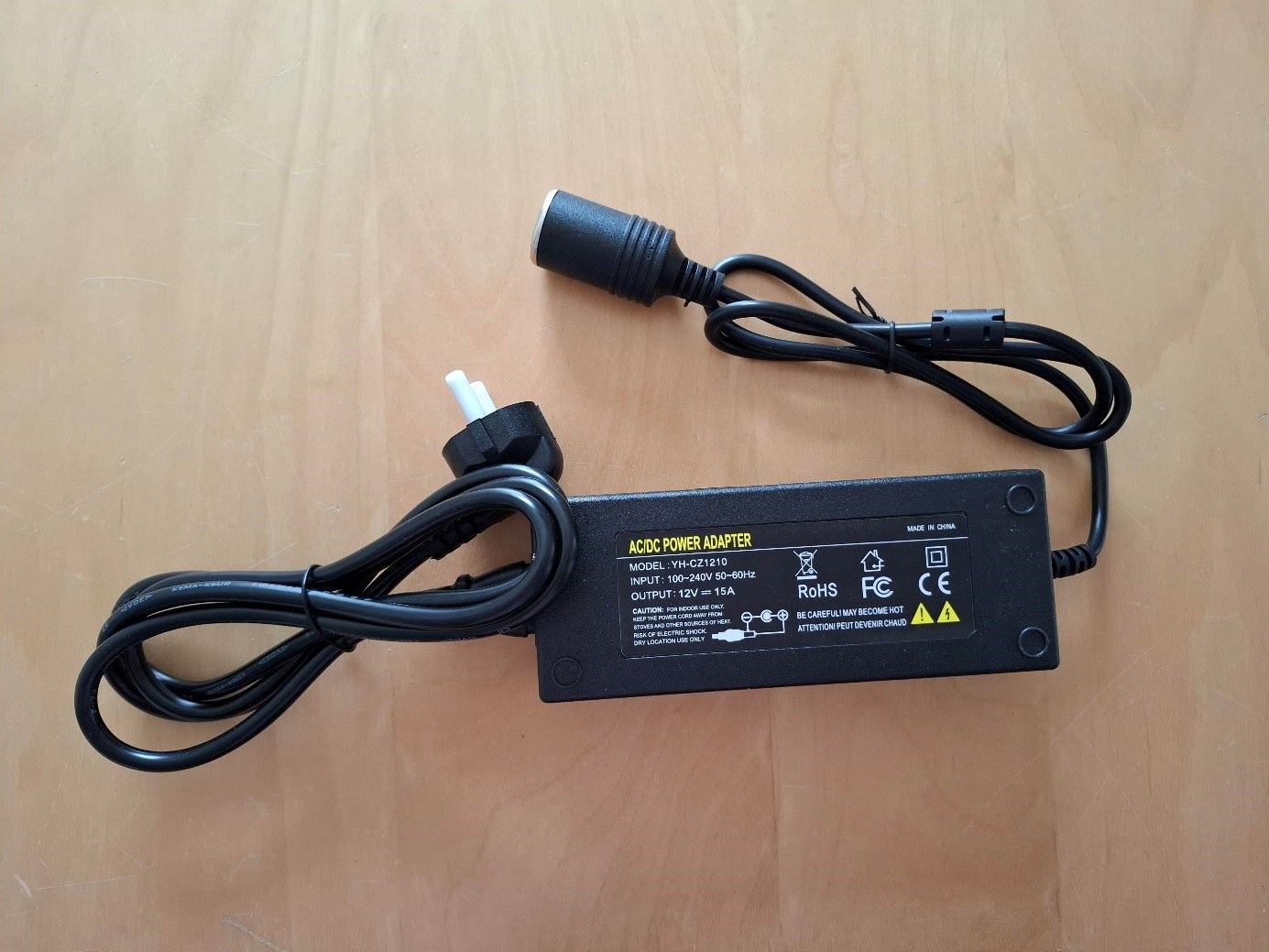

When connecting to a 230V line, we use a commercially available voltage converter (not available from us) with a cigarette lighter socket. The voltage is converted from 230V to 12V. Make sure that the converter is protected by a fuse with at least 10A. The connection cable emerges from the rear panel at the very bottom right (front view), is approximately 1m long, and can be equipped with a cigarette lighter plug upon request. It's a solid black cable.

The toilet can simply be placed on the floor; it has small rubber pads on the four corners to prevent it from slipping.

This means the toilet can also be lifted to the side for cleaning purposes.

The toilet can be screwed to the floor or wall. Since this varies, no holes are provided in the casing. It's very easy to drill a hole in the back wall or floor; the aluminum sheet is easy to drill.

When drilling into the floor, make sure to use sealing screws, as the bottom of the housing is sealed from the factory. This way, you're on the safe side in case of any mishap with the urine canister.

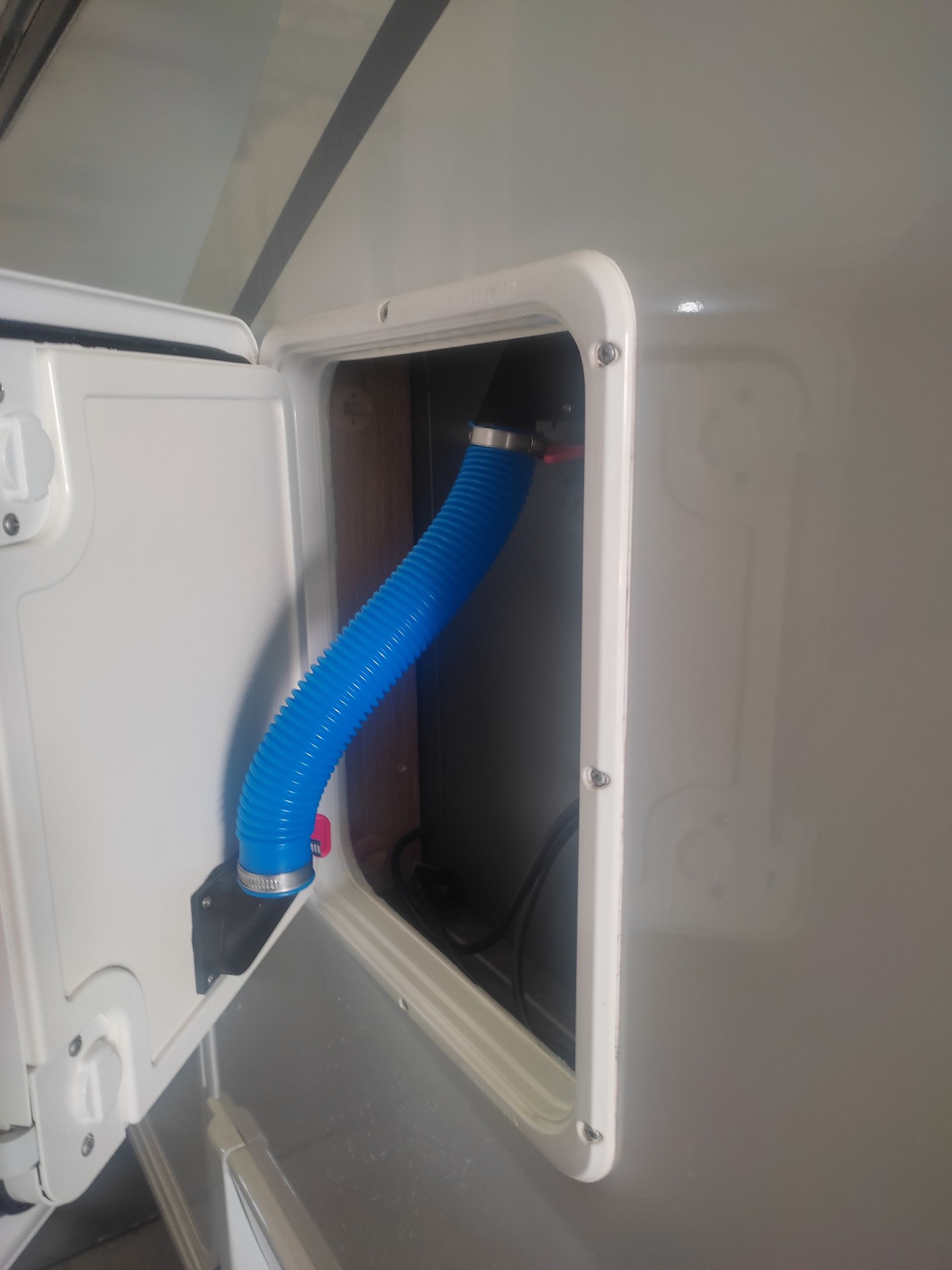

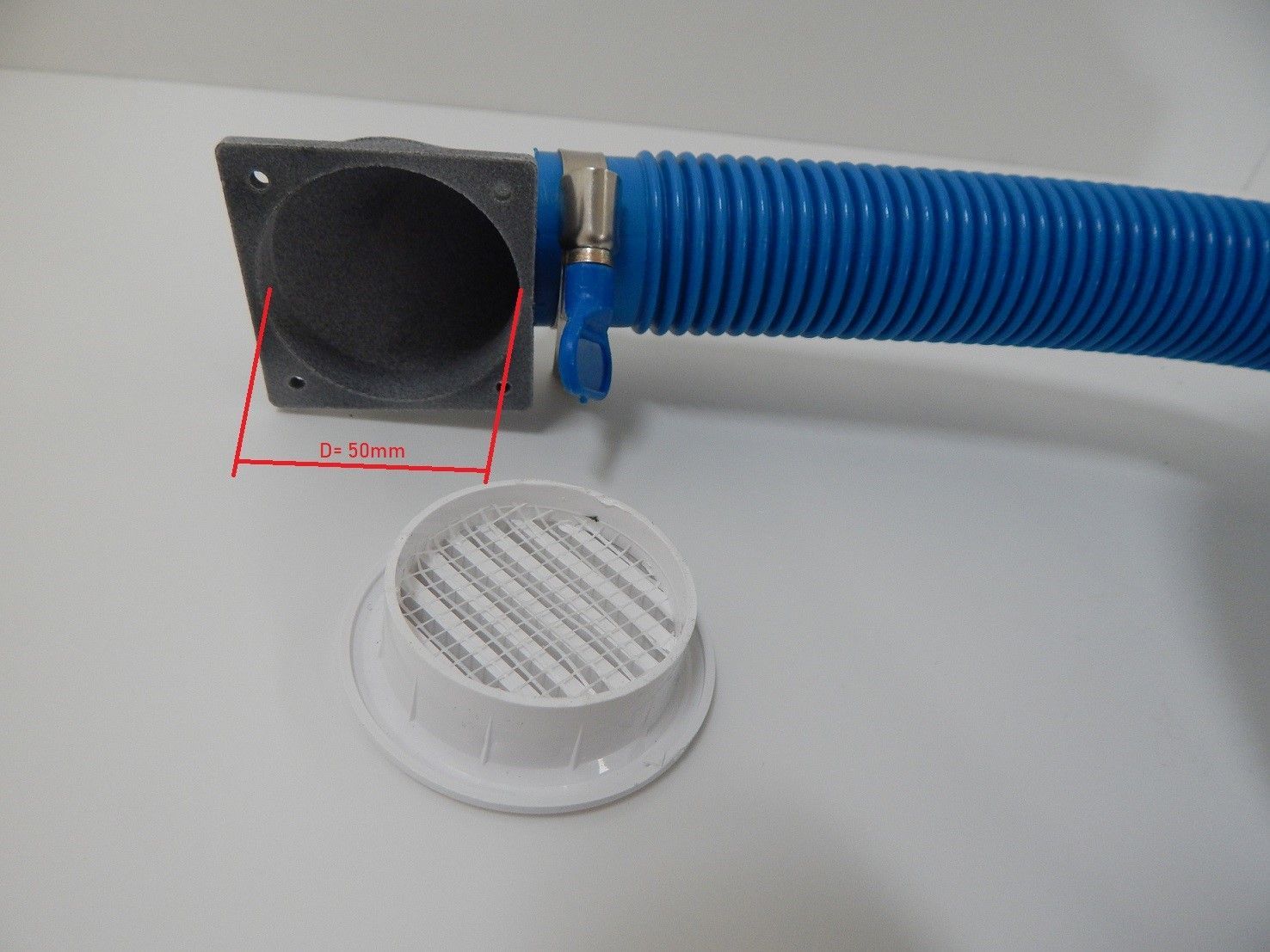

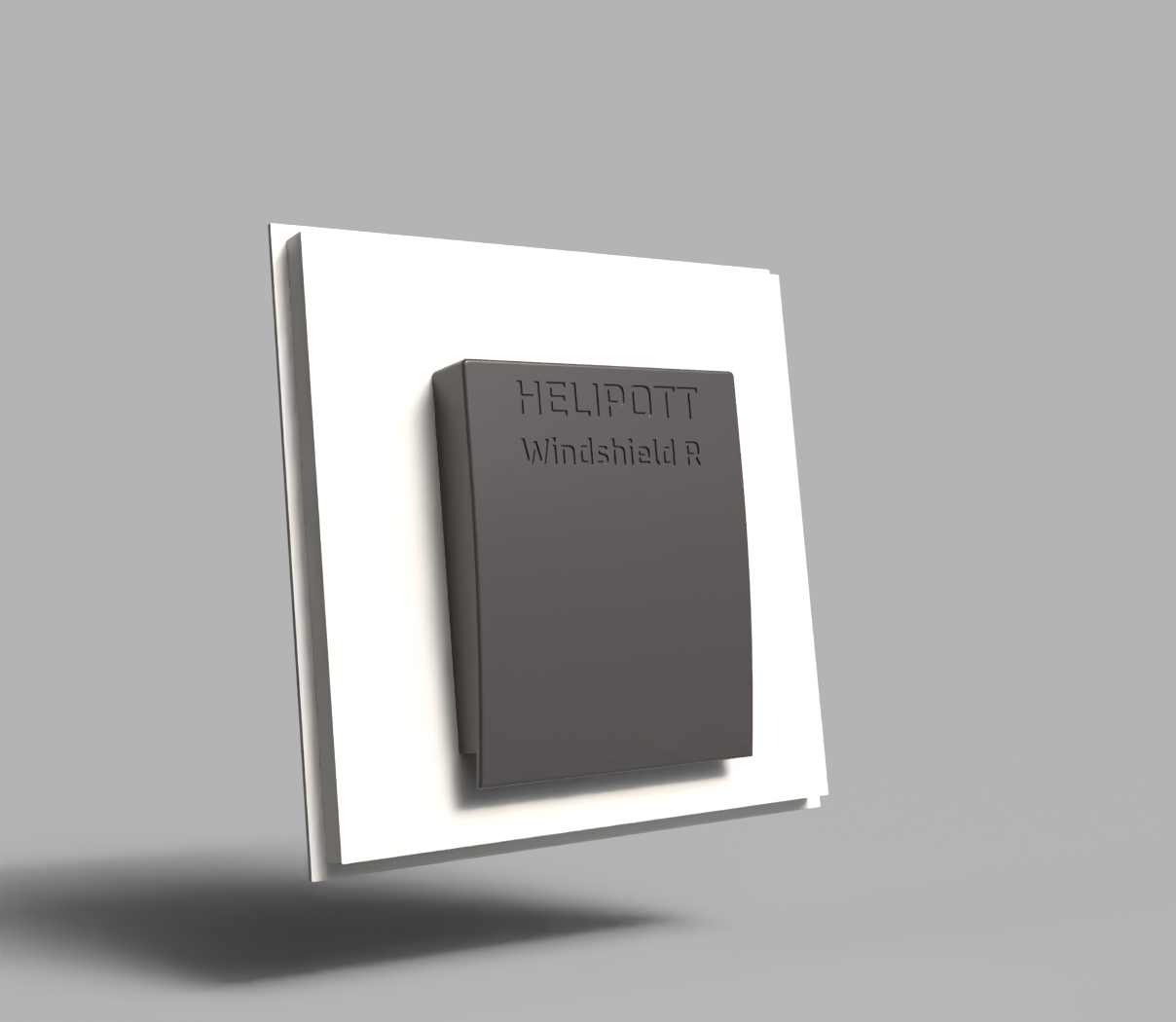

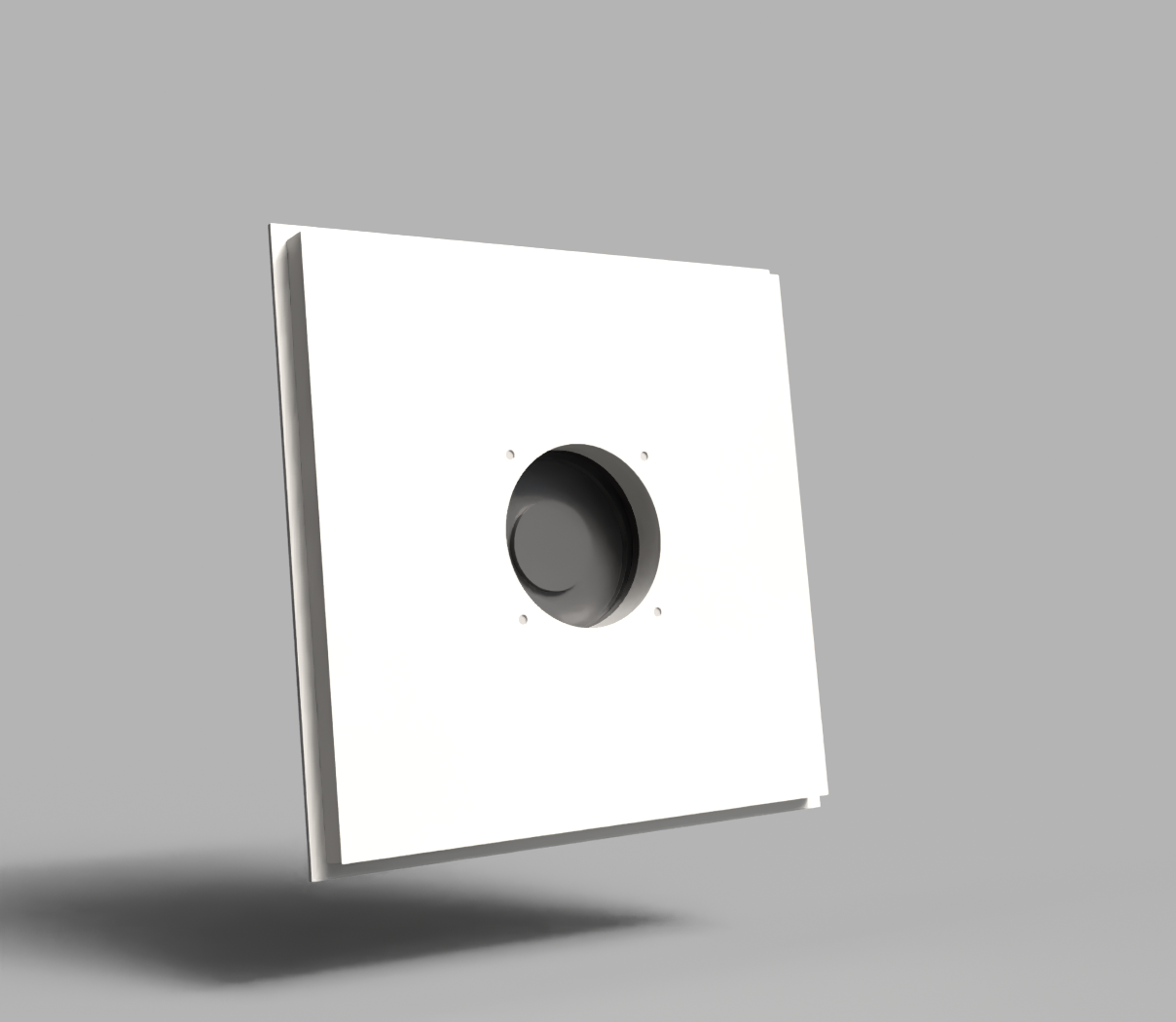

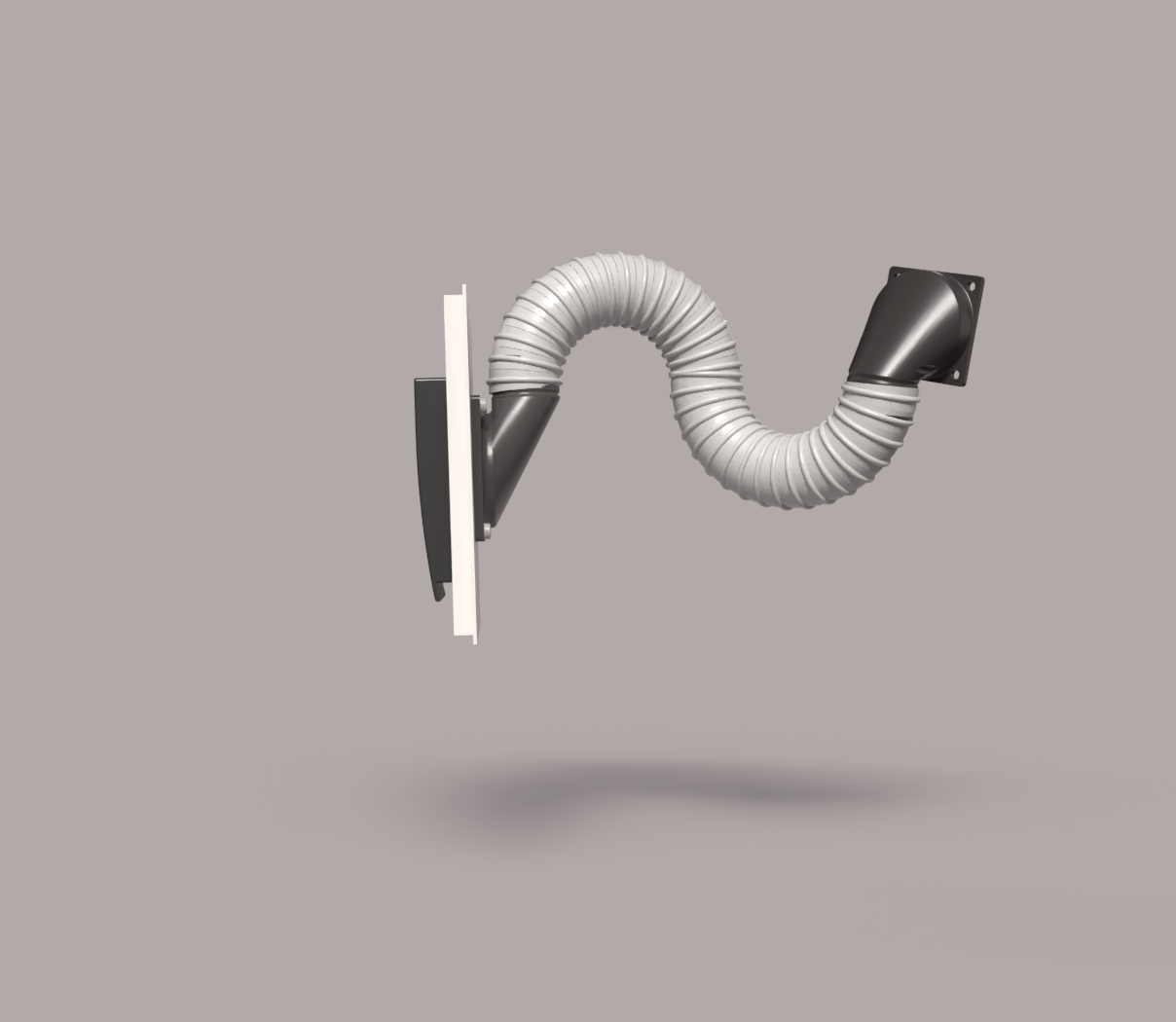

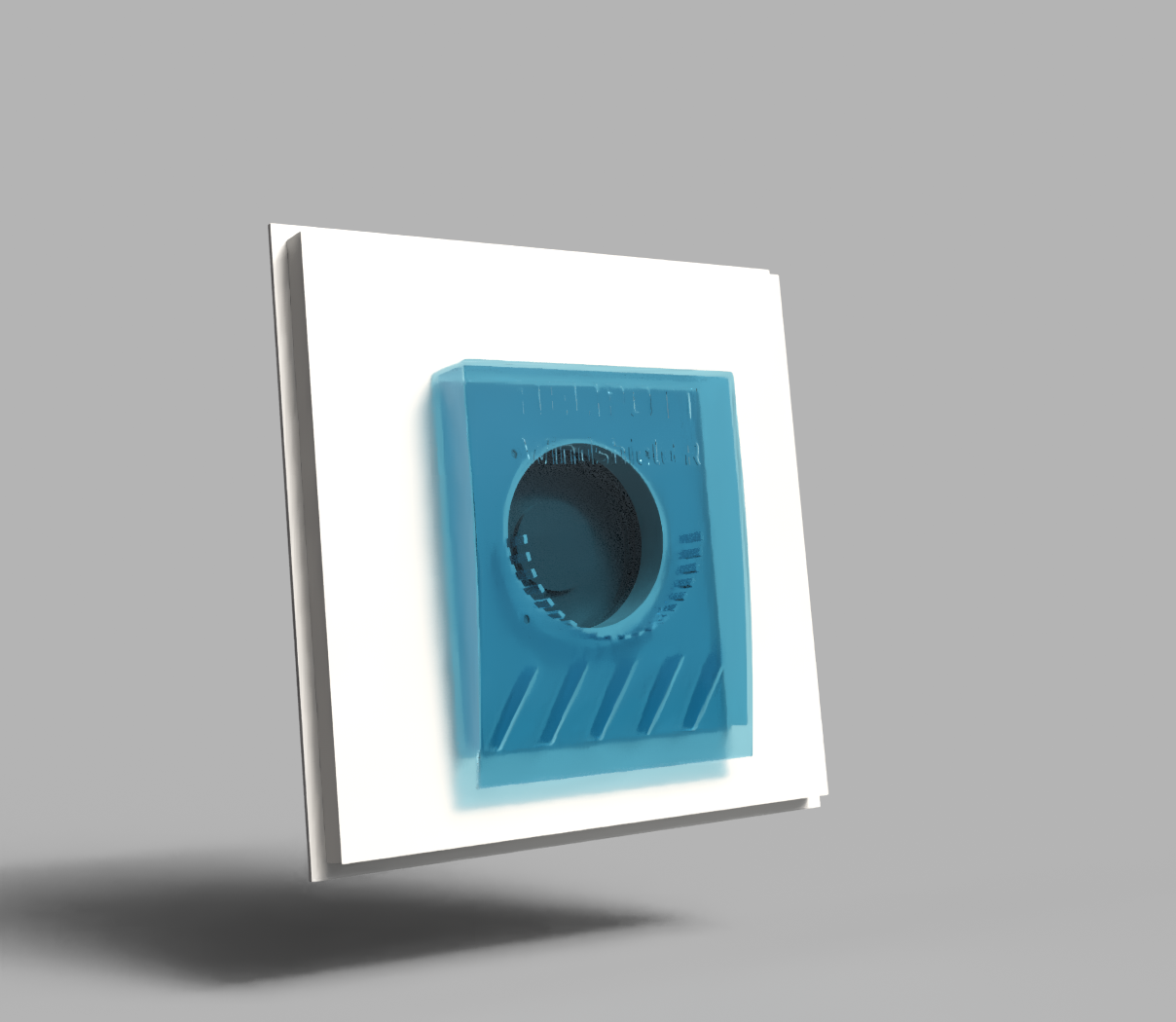

The connection of the exhaust air duct (ventilation grille) of our exhaust air kit is 50mm in diameter.

The blue hose itself has a diameter of 32mm.

The hose line has been tested so far with a maximum length of 2m and works very well.

Installation examples

Here's a brief overview of practical installation examples where HELIPOTT is already being used successfully. Are you still looking for your very own individual installation solution? Contact us at info@helipott.com

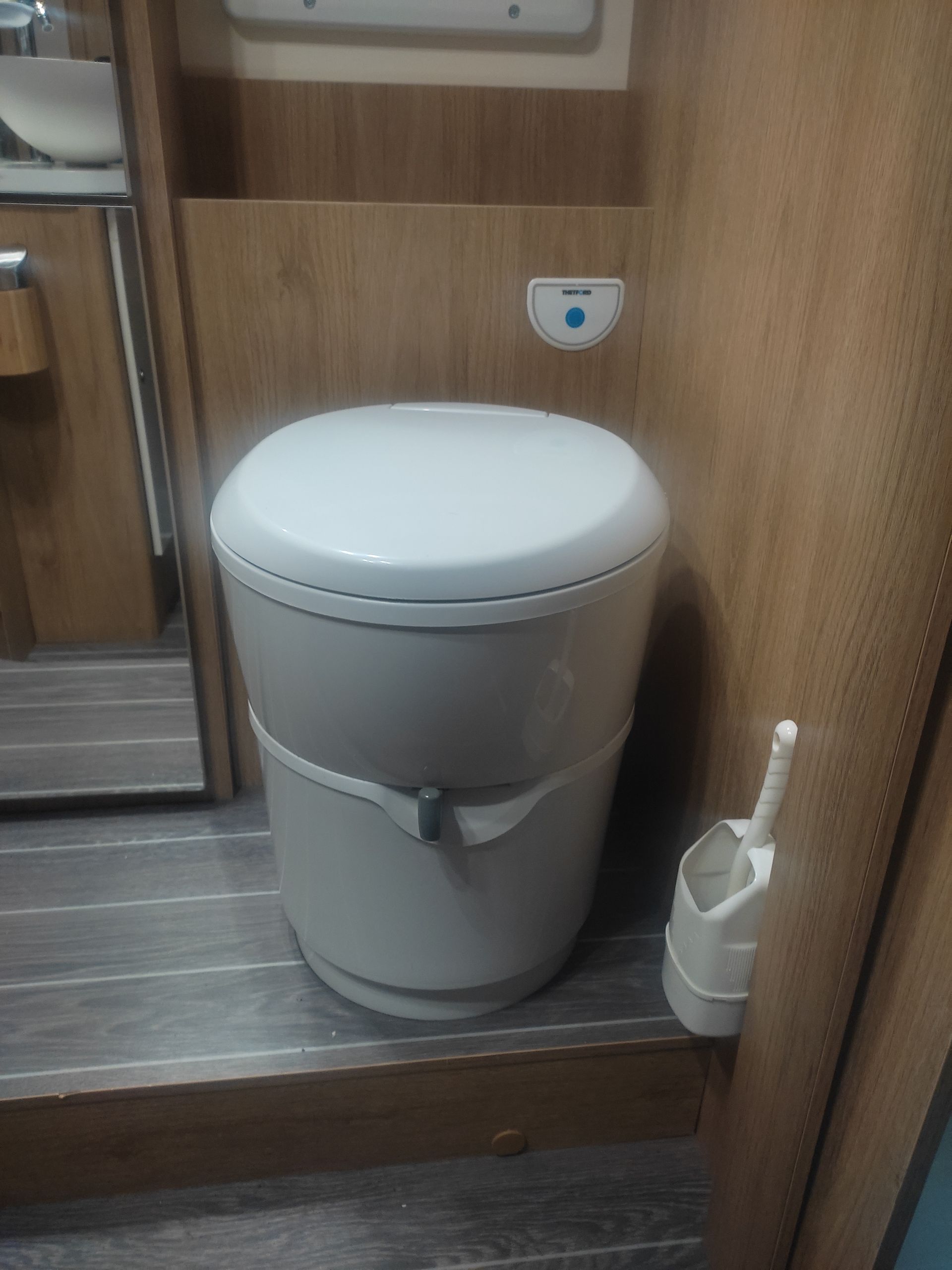

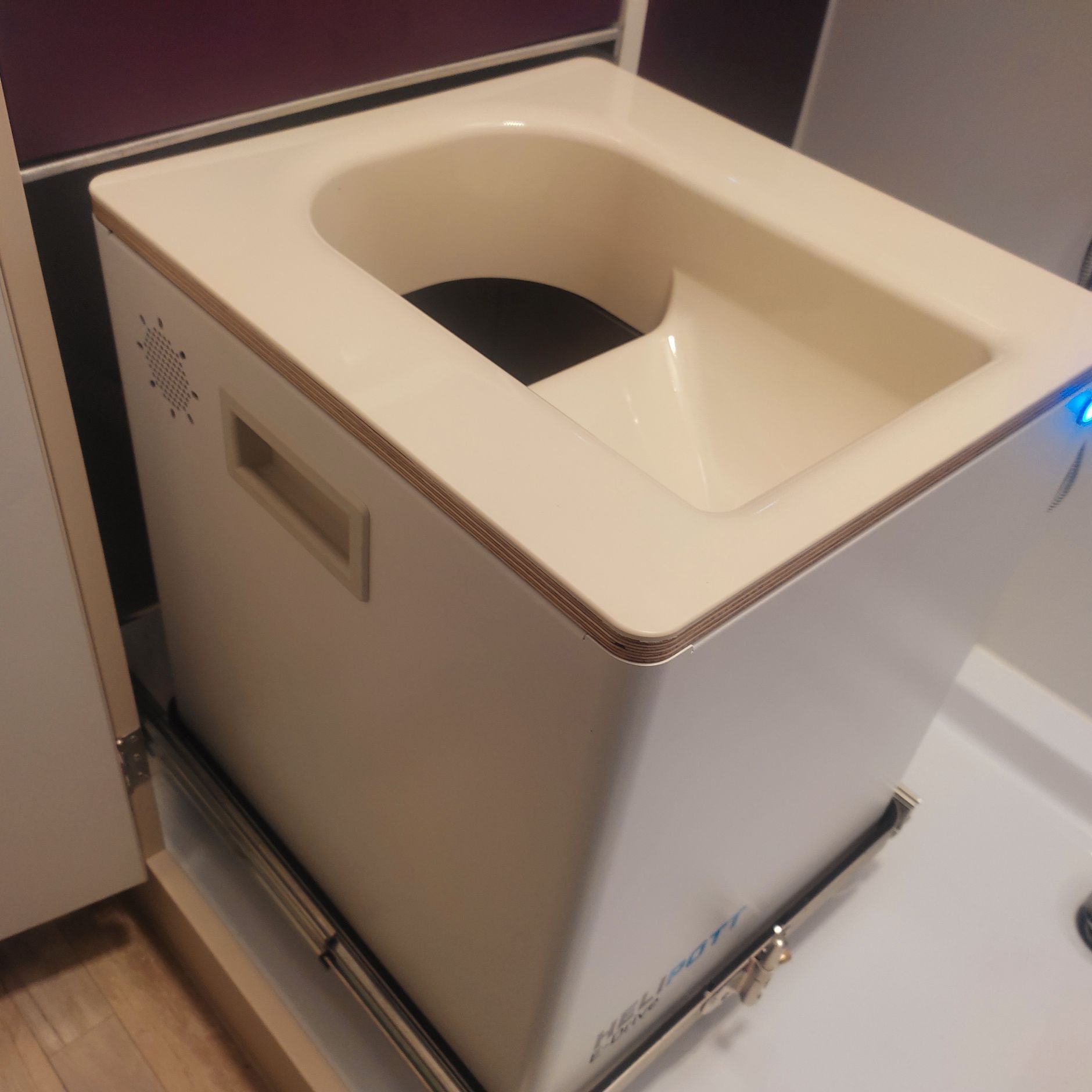

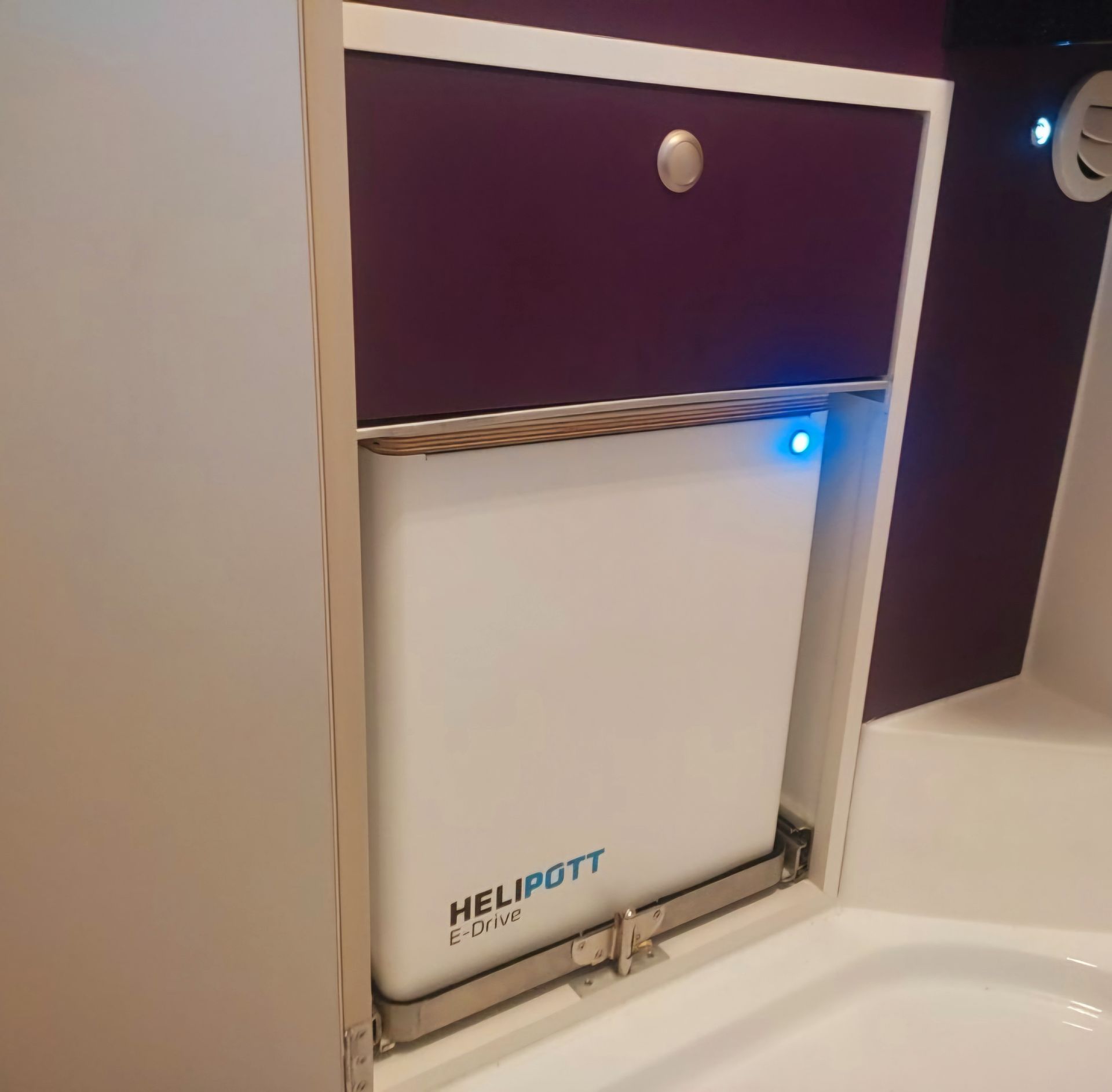

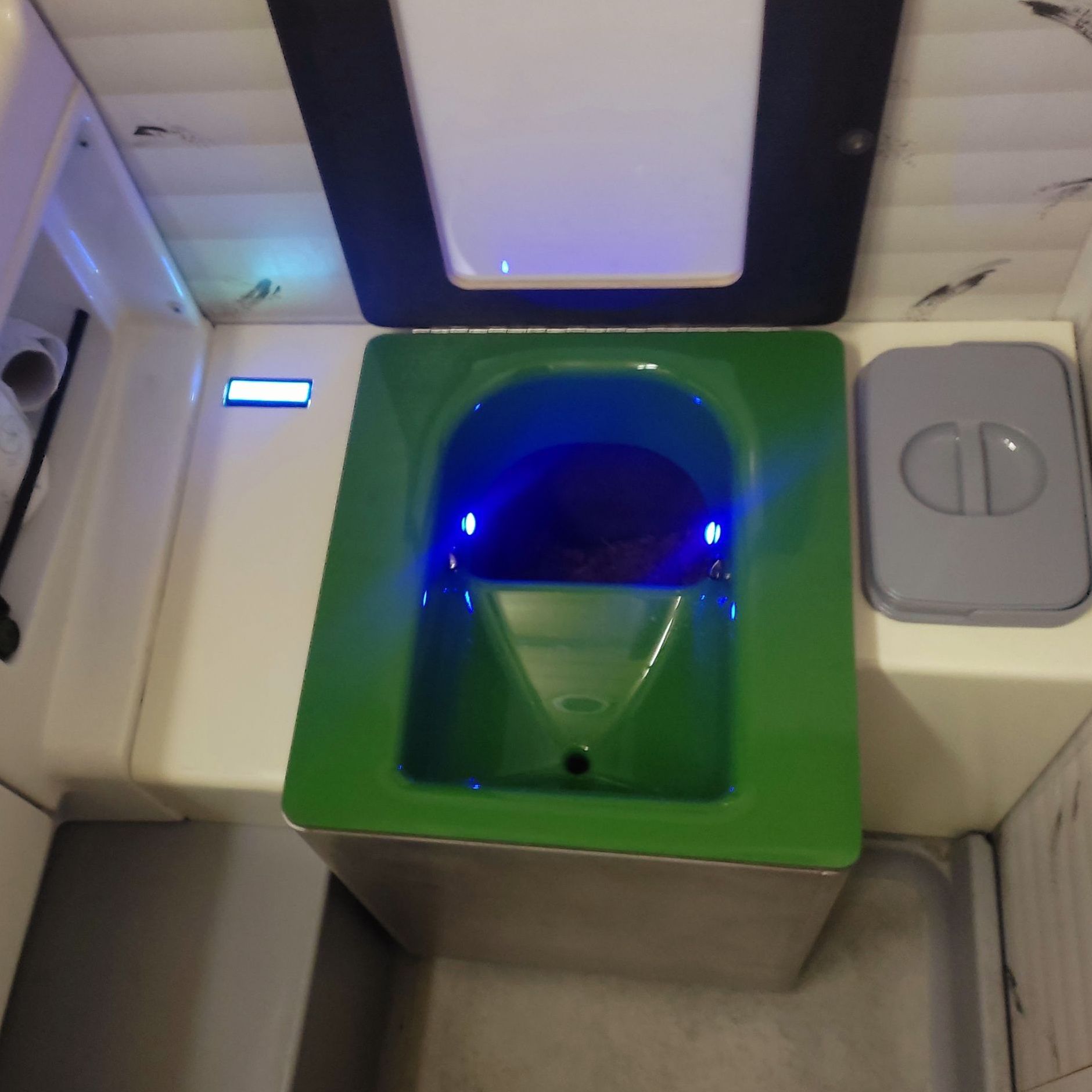

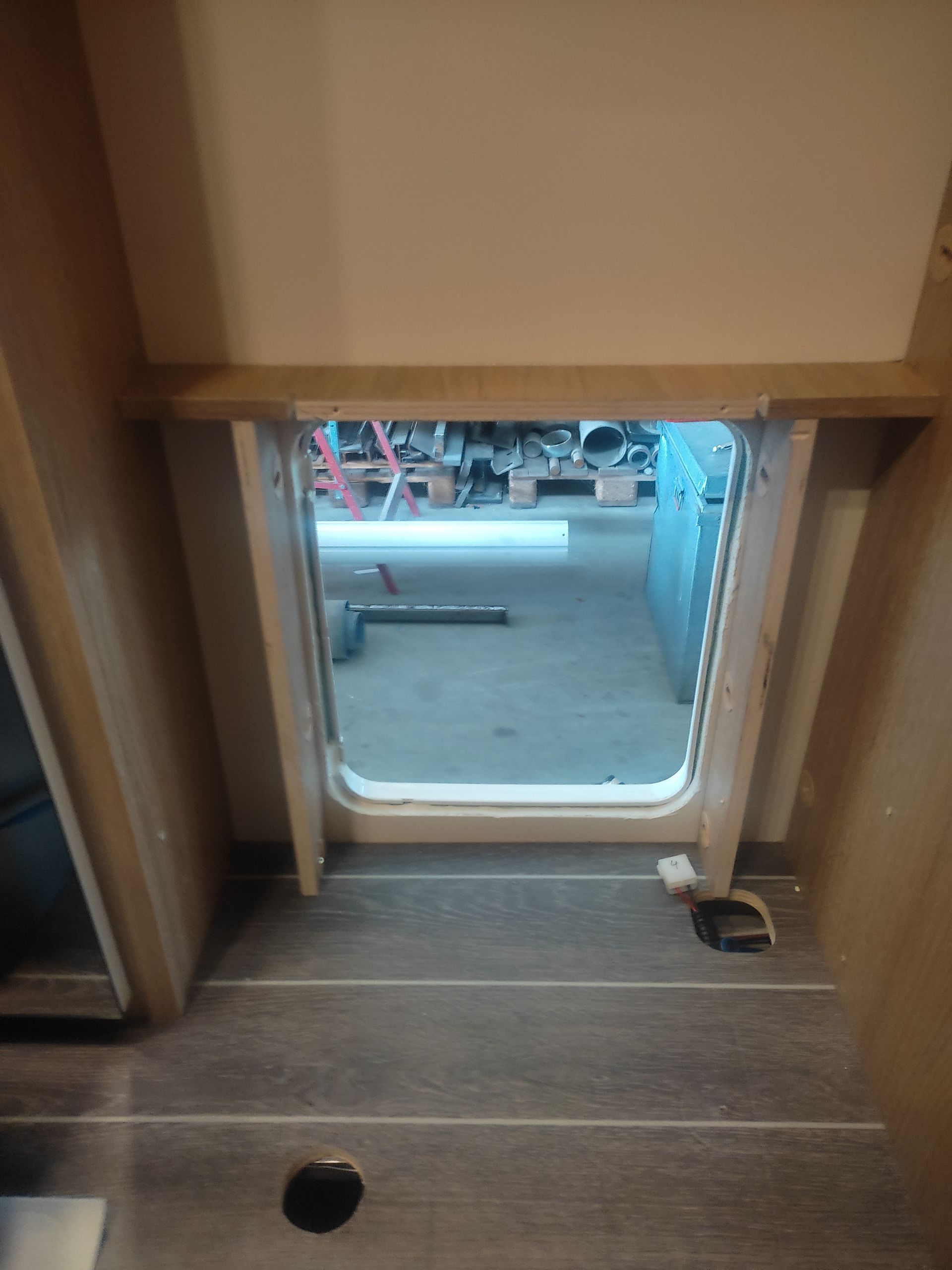

Installation in the motorhome

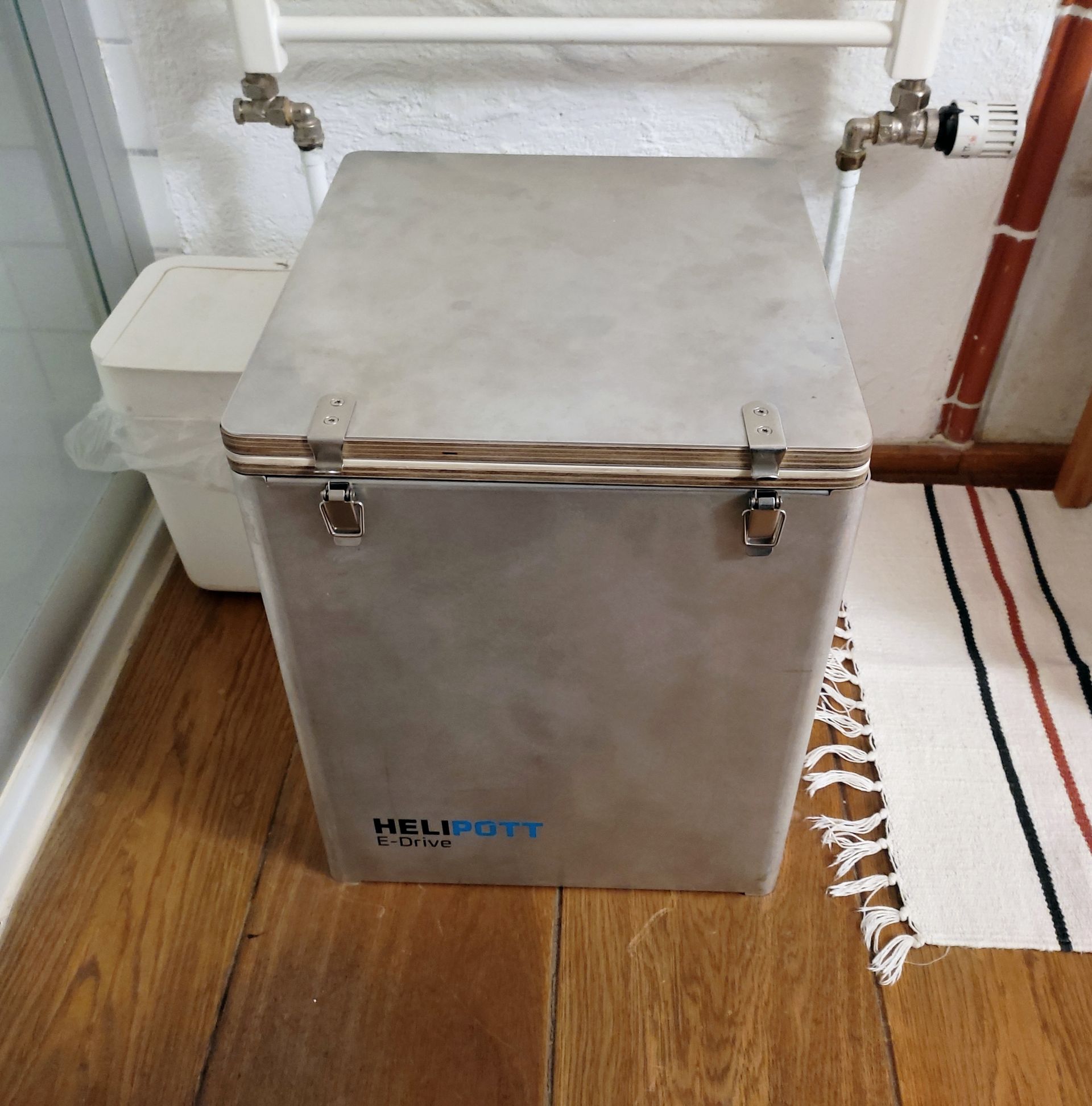

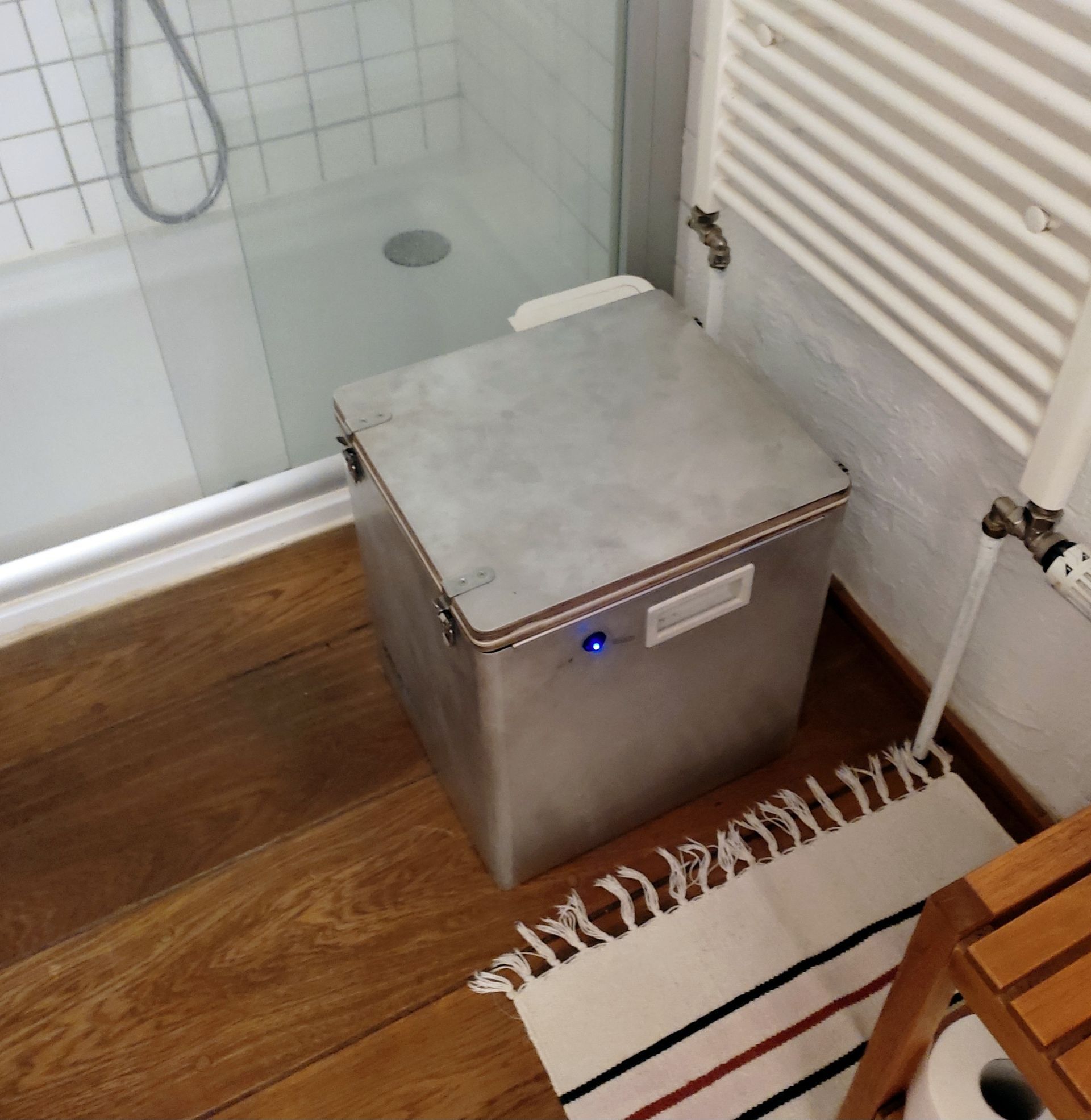

Installation at home

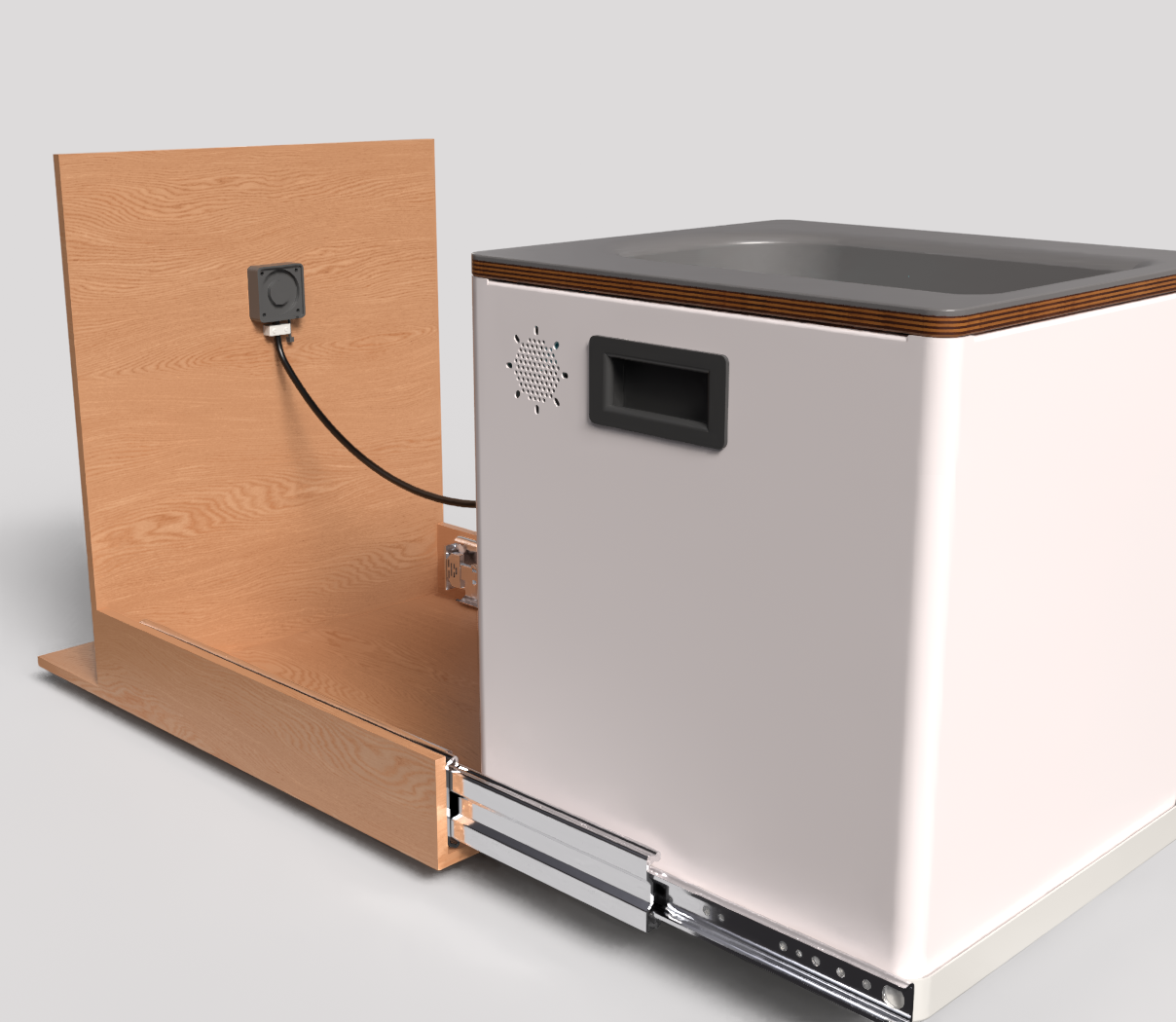

Further installation solutions

FAQs

Welcome to our FAQ section! Here you'll find answers to the most frequently asked questions about Helipott. We want to make sure you have all the information you need to make the best possible decision.


Your question is not listed? Ask your question info@helipott.com

The following questions refer to the E-Drive model.

  • How does HELIPOTT work?

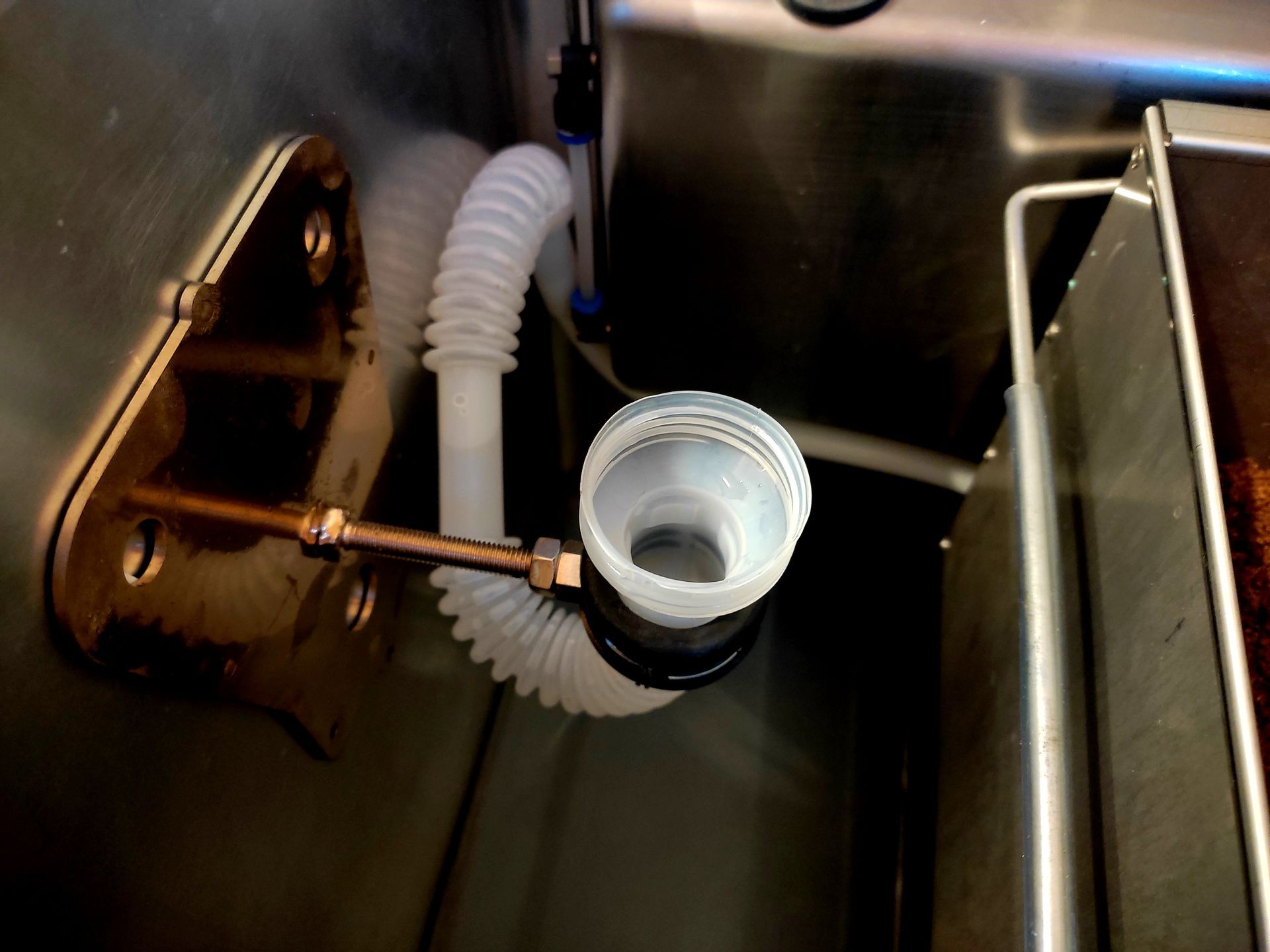

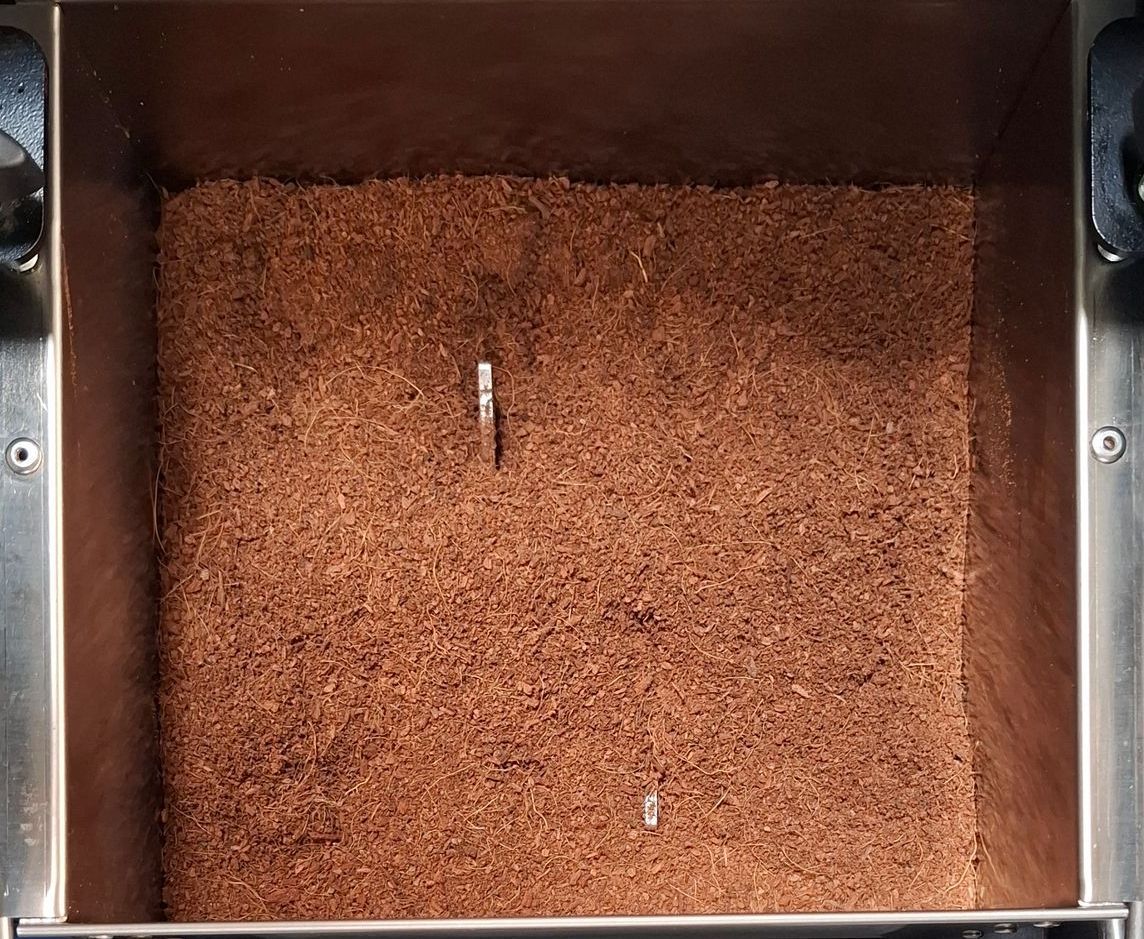

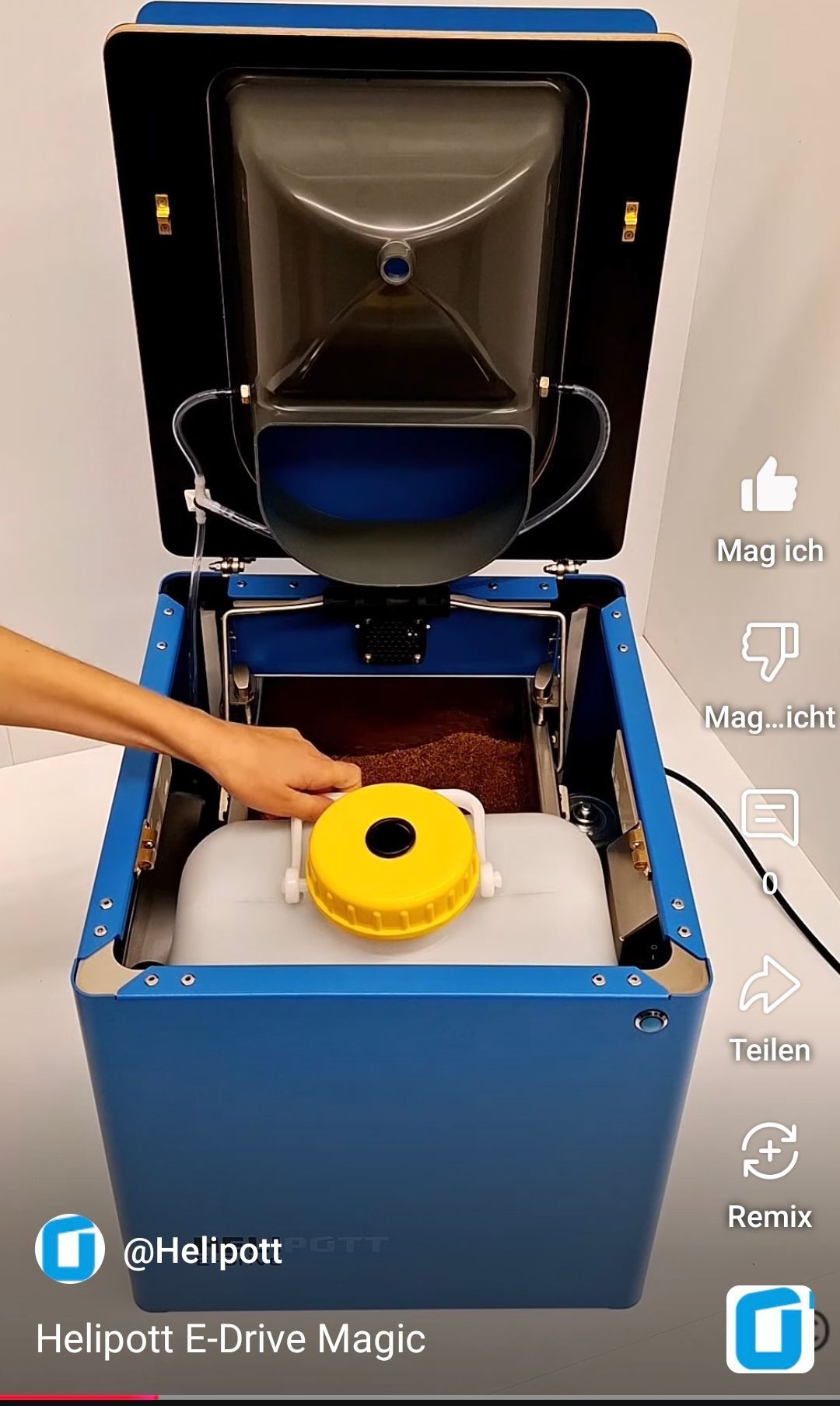

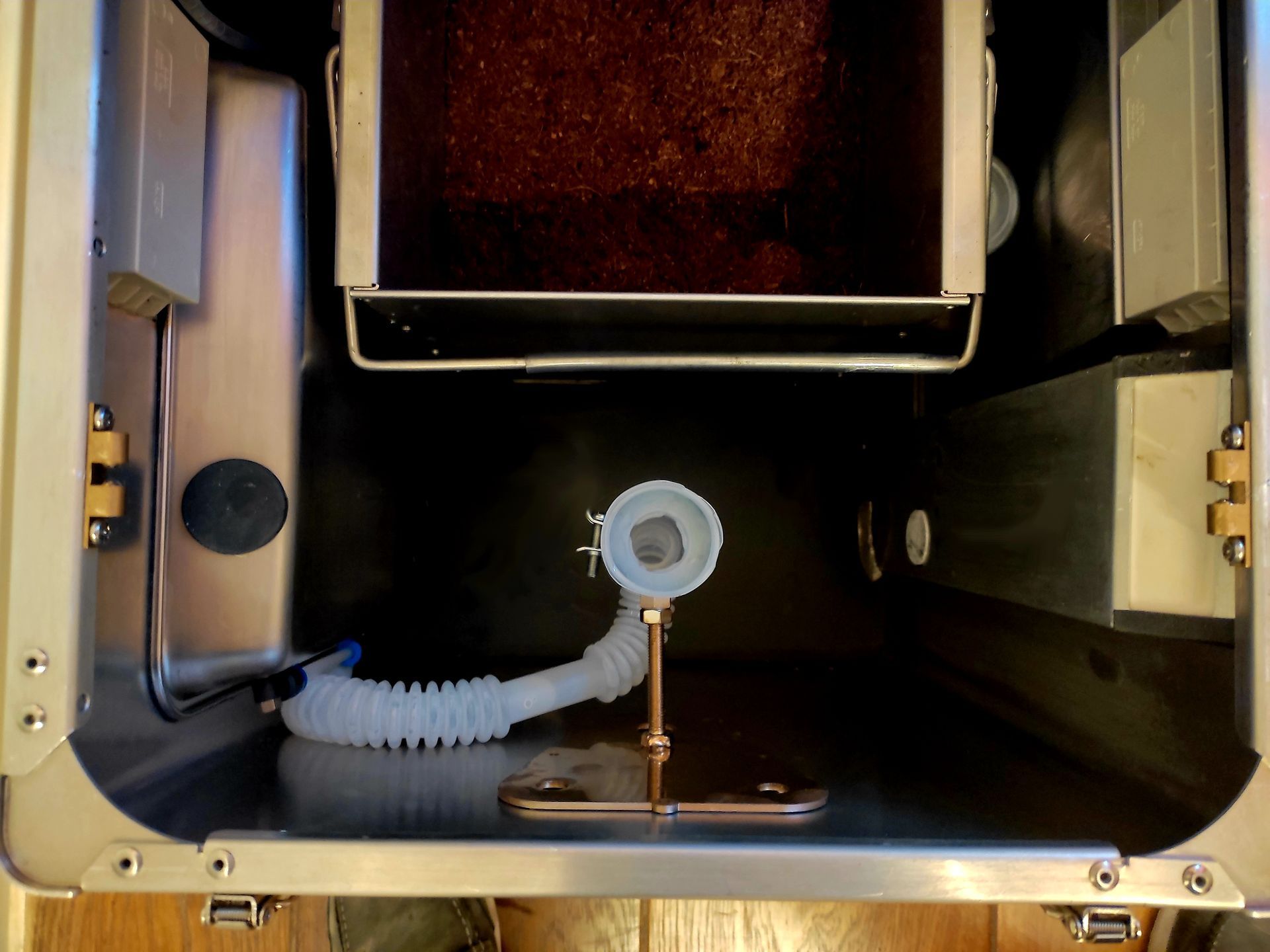

    With HELIPOTT, liquids and solids are separated in a special toilet bowl consisting of two separate compartments. Already familiar with this? Then read on, HELIPOTT can do much more. HELIPOTT E-Drive: The solids land directly in a container with a fully automatic agitator, where they are mixed with a dry substrate (coconut fibers). With HELIPOTT, fresh dry substrate is added once at the beginning and continues for 20-30 uses (i.e. longer sessions). Manually adding dry substrate is not necessary, as the agitator stirs automatically when the toilet lid is closed, thus reducing odors to a minimum. A fan inside the toilet sucks away any odors that arise during the toilet and transports them outside via an exhaust pipe. For liquids, the automatic spray device in the separation bowl keeps things tidy. After use, it sprays a small amount of water into the urinal, also automatically when the lid is closed. Emptying the urine tank is very smart and convenient and can be done using a normal toilet or, at campsites, the emptying station.

  • How and where do I empty HELIPOTT?

    How to dispose of the solids: HELIPOTT tells you when it's time to dispose of them. To empty them, simply remove the agitator and tip the compostable material into your household waste or compost bin*. Rinsing with water or other materials is not necessary. Disposal is therefore extremely convenient with HELIPOTT. The laborious removal of the agitator container and agitator, as in previous models, is now a thing of the past. *If you have your own garden, you can put the material in the compost bin. There, the solids will compost into humus after at least 24 months. Make sure it's a closed compost bin with a lid so that no black water is washed into the soil. How to dispose of the liquids: The Helipott also has an indicator for the urine tank. When the tank is full, you can simply remove it. The urine can be disposed of directly in a toilet or at a waste disposal station. Or if you have your own garden, it can also be diluted with water and used as plant fertilizer.

  • Why doesn't it stink with HELIPOTT?

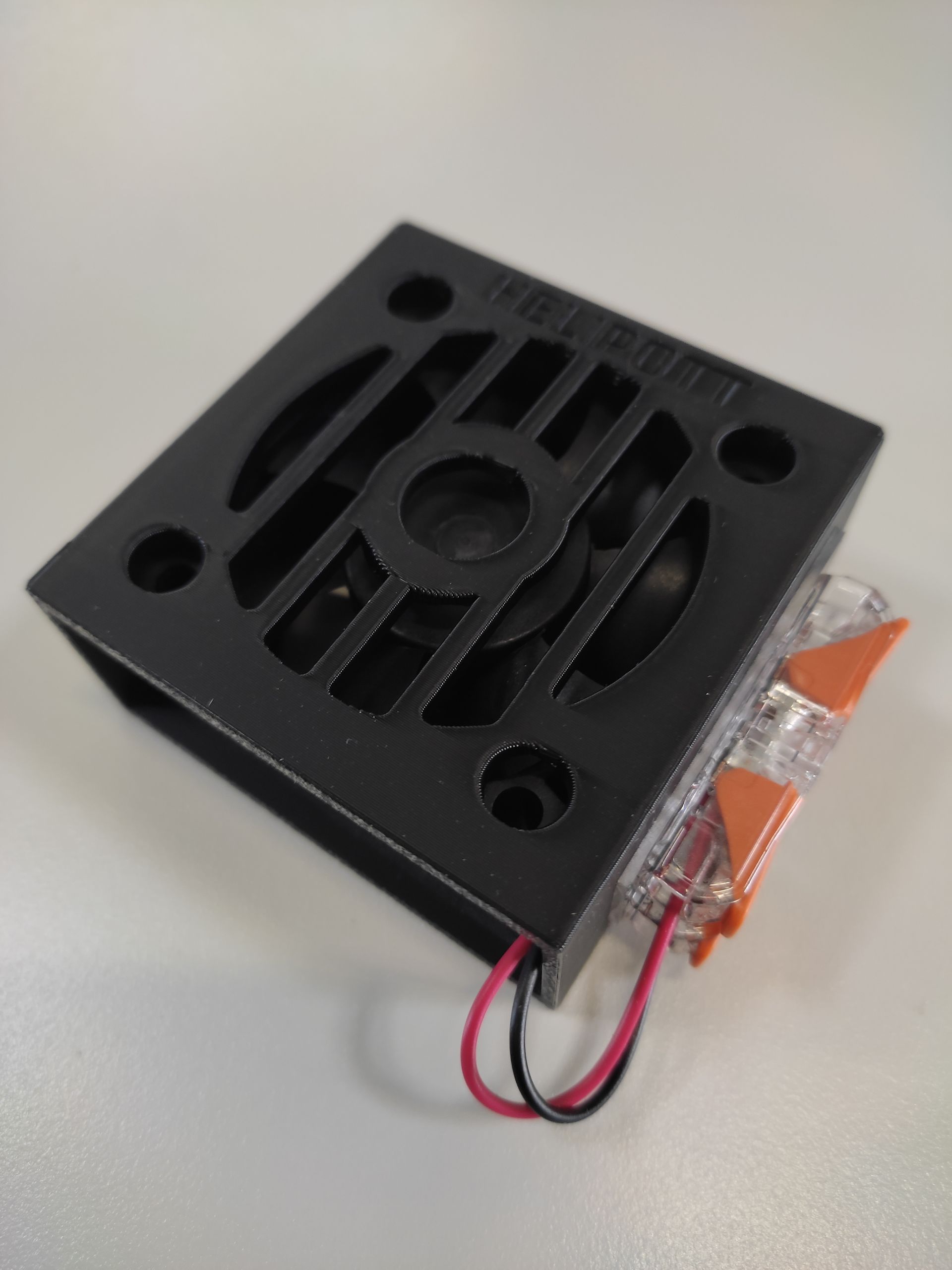

    It's actually quite simple. Your body is already smart enough to separate its waste into solid and liquid. This natural principle should also be maintained during disposal. Firstly, the separation of solid and liquid substances prevents mixing. This means that the chemical reactions that form ammonia-containing compounds and lead to strong odors simply cannot take place. Secondly, the solids are mixed with a dry substrate (coconut fibers). This causes the feces to dry out and any odors are no longer noticeable. A small integrated fan (included with E-Drive) keeps any remaining odors away for good. Even after extended periods of inactivity, no unpleasant odors develop. The remaining material looks and feels like potting soil, and also smells like it.

  • Can I dispose of toilet paper in the HELIPOTT?

    Toiletries such as toilet paper, pads, or tampons must be disposed of separately, preferably in a small trash can.

  • How do I clean my HELIPOTT?

    The compost bin with the agitator can be removed and emptied. Using the included spatula, you can loosen the soil-like substance slightly and then empty the bin. Any residue is usually dry and easily removed from the metal. Smaller residues may remain, which will be rubbed off and absorbed by the new substrate.

  • Is the agitator dangerous for my child?

    The HELIPOTT E-Drive is designed so that the agitator only operates when the lid is closed. This is monitored by the integrated sensors. However, it is not a toy, and small children should not handle it alone.

  • What advantages does HELIPOTT have over other composting toilets?

    The main advantage of HELIPOTT is certainly that the excreted solids do not leave behind any unpleasant odors. See the "Reports and Blogs" section for more information. Another major advantage of the HELIPOTT E-Drive is that all functions run automatically. This makes it very easy to use. The user simply has to open the lid and close it again after use; the intelligent program takes care of the rest. This makes it safe and easy to use. As soon as the HELIPOTT E-Drive is connected to the power supply and switched on, it first performs a self-test and then goes into sleep mode to save energy. As soon as you open the lid, HELIPOTT wakes up from sleep mode and starts its program. Immediately afterwards, the ventilation and LED light up. If the LED is constantly lit, HELIPOTT is ready for use. If the LED flashes, something is wrong, such as the urine canister being empty or full. If everything is OK, you can do your business as usual. After closing the lid, two redundant sensors are activated to check whether the lid has been closed. If the lid is closed, the spraying system for the urinal (E-Drive Magic) and the agitation program start. The agitator rotates forward and backward for a set time, switches off, stirs again after a short time, and then for a few seconds every hour. When the substrate in the agitator becomes saturated, it begins to clump. At this point, the compost bin should be emptied.
