E-Drive Models
Both E-Drive - HELIPOTT models are program-controlled composting toilets. These are operated exclusively via lid-open/close sensors.
The
E-Drive Standard
The variant consists of the high-quality original Helipott housing, made of sturdy aluminum, with the Futura separator attachment, the indestructible 9mm multiplex lid with aluminum cladding on both sides and the sturdy stainless steel hinges with adjustable friction.
The variant
E-Drive Magic It also features an automatic spray system for the front liquid tray (for sizes M and L). After closing the lid, the tray is automatically sprayed. Water and mild cleaning agents can be used for this purpose.
The Scope of delivery The E-Drive includes: toilet with housing and separating attachment, agitator, fan and electrical connection (2-core connection cable, optionally pre-installed with a cigarette lighter plug free of charge), urine canister with 2 screw caps (1x closed cap) and 1x with odor seal in the lid), plastic spatula with holder for cleaning, coconut substrate for the initial filling. Fill the substrate up to the tips of the vertically positioned stirring blades. Do not overcrowd, otherwise optimal mixing cannot be guaranteed.
The E-Drive Magic also includes an integrated fresh water tank with a capacity of approximately 1.5L, as well as a spray device.

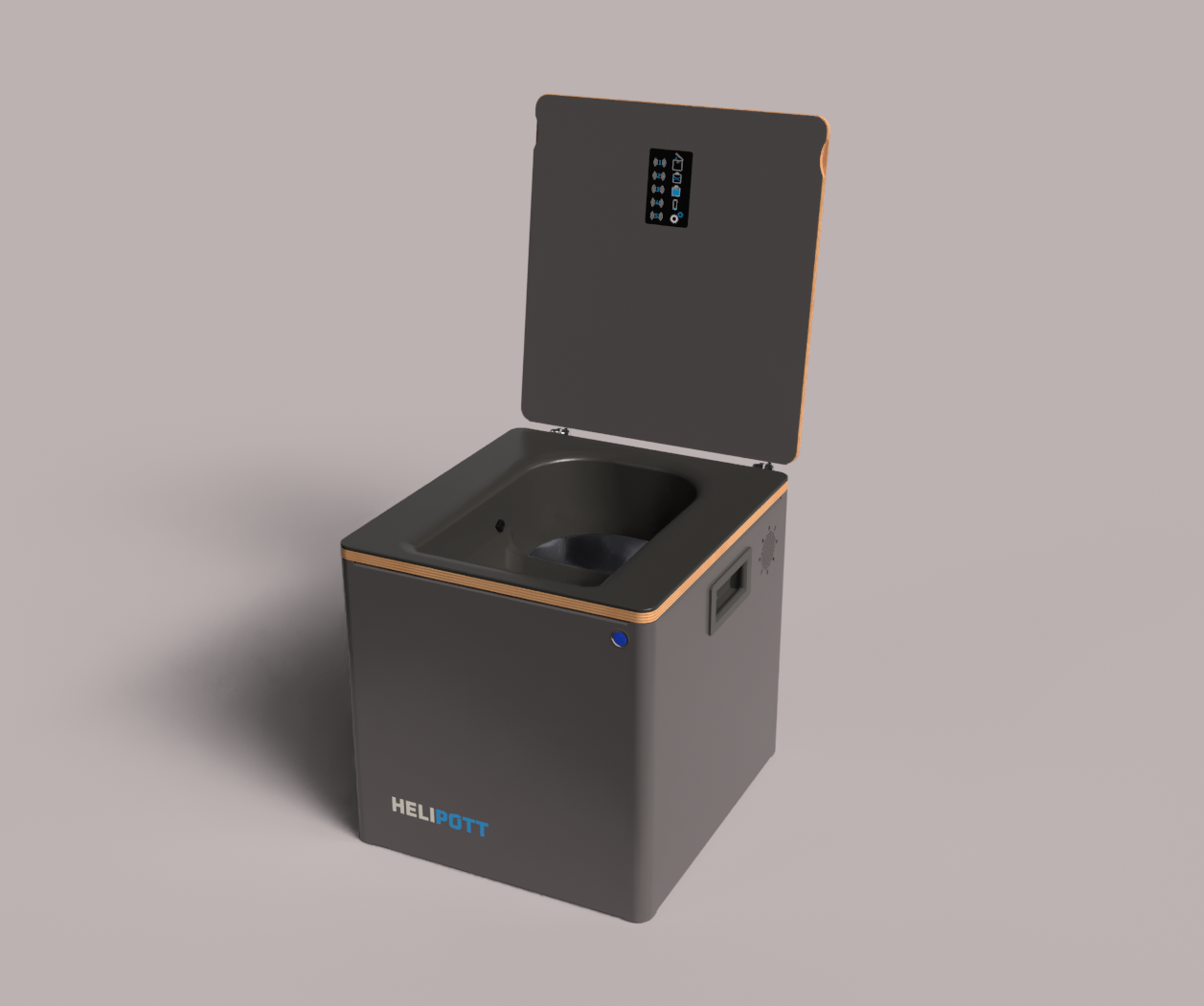

E-Drive Size S
Our smallest e-drive with external dimensions
W/H/D 370/380/410mm (see details) INFO>Technical Information)
Urine tank size: approx. 7L, agitator size: approx. 6L usable volume, direct connection, 12V.
Housing: aluminum powder-coated with fine structure, separating attachment: smooth.
The E-Drive Size S is only available in the standard version (without a spray device for the urinal)..
Size S Prices incl. VAT (19%):
In the color combination
Housing grey/white, divider attachment grey/white:
E-Drive Standard: €2.149,00

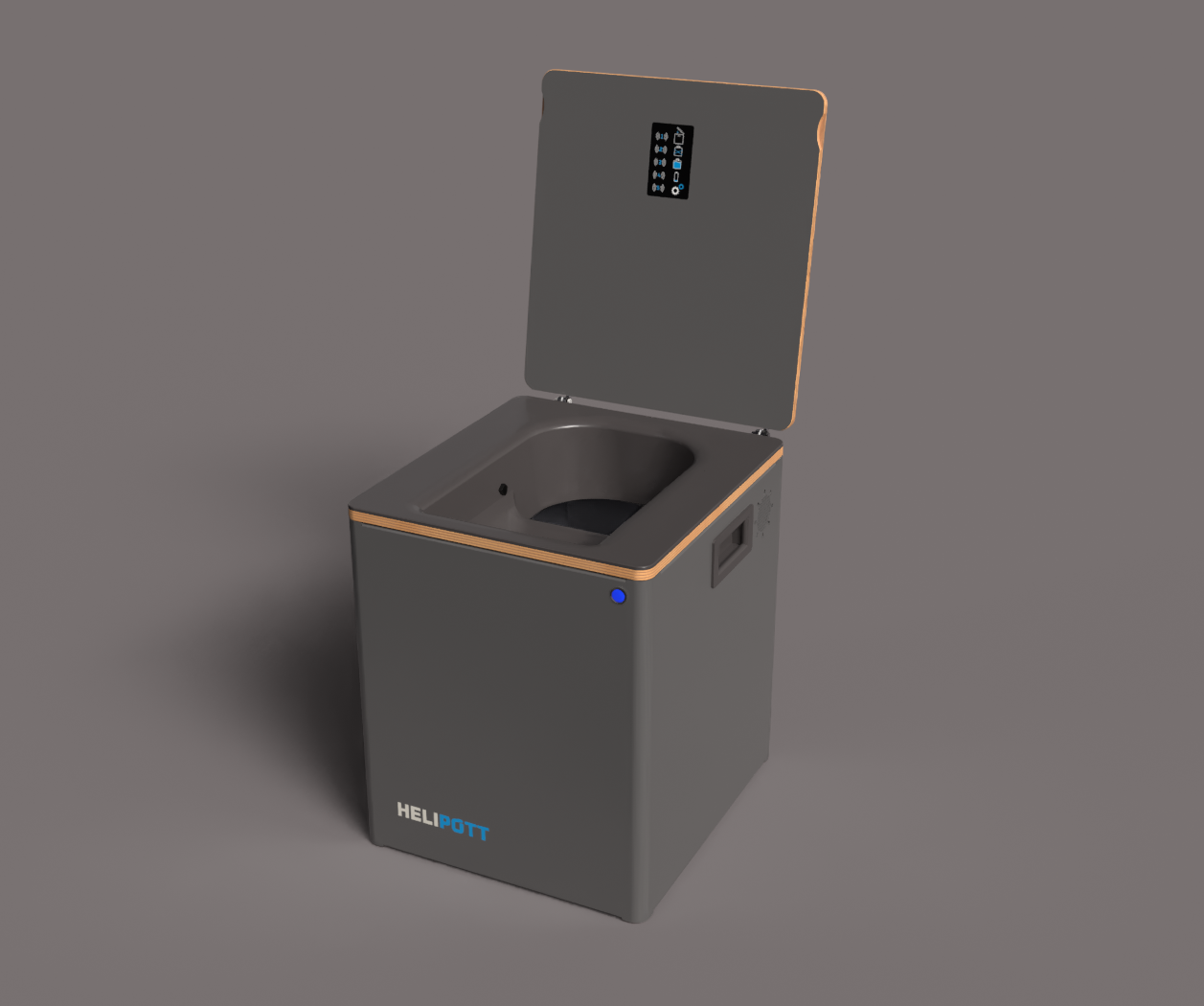

E-Drive Size M
The bestseller with the external dimensions
W/H/D 370/446/410mm (see details) INFOS>Technical Information)
Urine tank size: approx. 10L, agitator size: approx. 6L usable volume, direct connection, 12V.
Housing: aluminum powder-coated with fine structure, separating attachment: smooth.
Size M Prices incl. VAT (19%):
In the color combination
Housing grey/white, divider attachment grey/white:
E-Drive Standard: €2.349,00
E-Drive Magic with spray system: €2.595,00
E-Drive Size L
Extra-large agitator for extended use. External dimensions
W/H/D 430/446/468mm (see details) INFO>Technical Information)
Urine tank size: approx. 10L, agitator size: approx. 12L usable volume, direct connection, 12V.
Housing: Powder-coated aluminum with a fine texture; separating attachment: glasstt.
Size L Prices incl. VAT (19%):
In the color combination
Housing grey/white, divider attachment grey/white:
E-Drive Standard: €2.595.00
E-Drive Magic with spray system: €2.895,00
EASY Models
Our high-quality stainless steel mixing mechanism in the EASY model is operated using a convenient hand crank with a 90° deflection. Only 1/3 of the stirring force is required for the mixing process, and the crank is positioned at a comfortable height.
This allows most users to operate the crank during the session, which is advantageous when working without any exhaust ventilation, as the waste can then be immediately stirred in and covered by the substrate. This largely prevents unpleasant odors from developing. For permanent installation and use in an enclosed space, we recommend installing appropriate exhaust ventilation; we would be happy to advise you on this.
The special feature: A convenient, removable crank on the front operates the agitator via a laterally mounted drive shaft. Thanks to the front-mounted hand crank, EASY can be stored in even the smallest space. The crank is mounted on the right as standard; a left-hand crank is available as a special order for an additional charge.
EASY is available in the MINI and XS formatand in Size M, wAs is typical for HELIPOTT, everything is of industrial quality. A convenient crank, which can be mounted on the front, either left or right, operates the agitator via a laterally mounted drive shaft.
The
Scope of delivery The Helipott Easy includes: Helipott Easy toilet with agitator and hand crank, urine canister with 2 screw caps (1x closed).
and
1x with odor seal in the lid), plastic spatula with holder for cleaning, coconut substrate for the initial filling. Fill the substrate up to the tips of the vertically positioned stirring blades.
Do not overcrowdThis prevents optimal air mixing. The Easy model can be purchased separately as a self-assembly exhaust kit with fan.

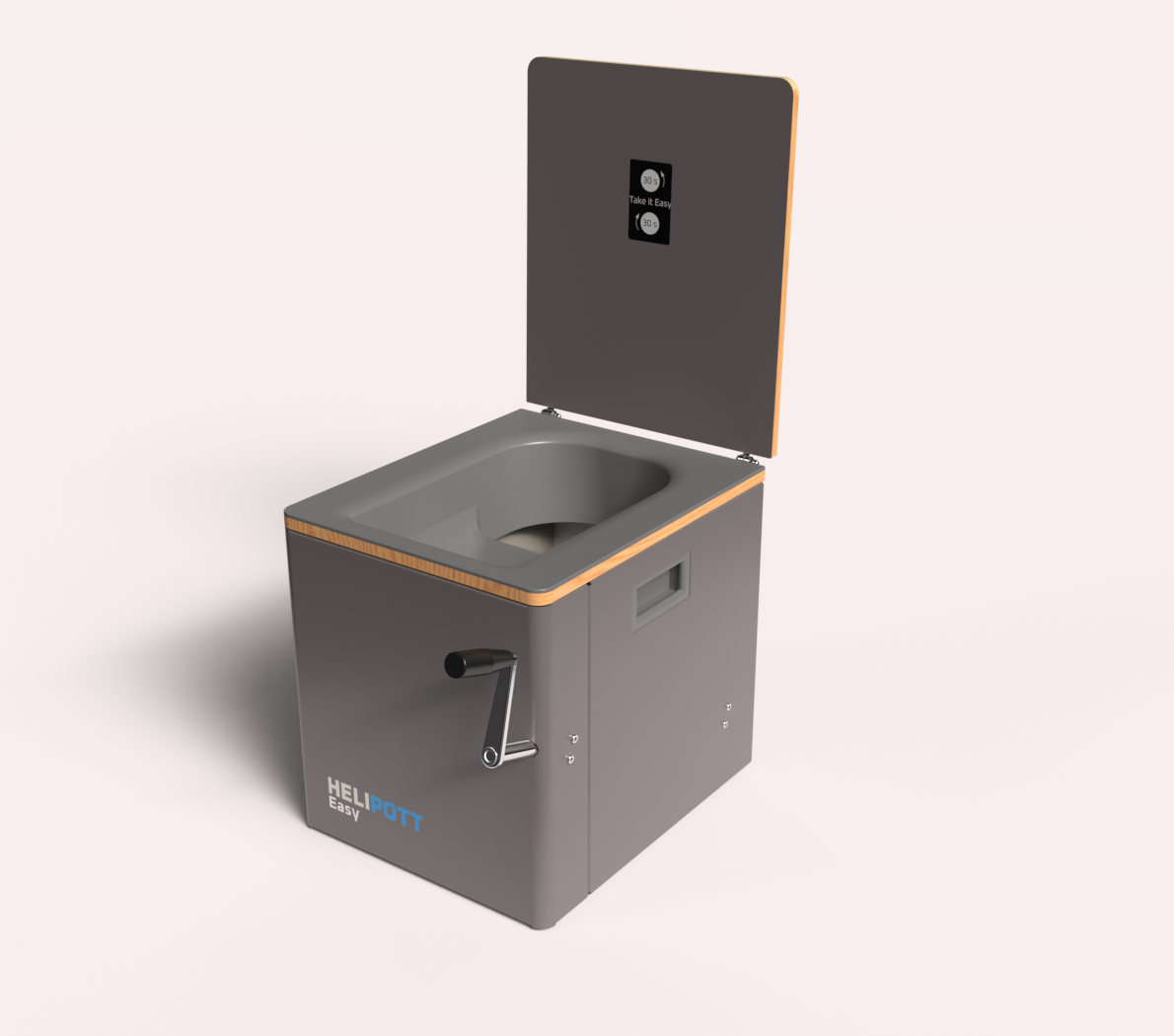

EASY Size Mini und XS
External dimensions W/H/D Mini 336/334/408 and
XS 336/383/408mm (see details INFO>Technical Information)
Urine tank size: Mini approx. 5L, XS approx. 7L, agitator size approx. 6L usable volume, no electricity required. Operation via removable hand crank.
Right-hand crank standard, left-hand crank available upon separate request..
Housing: aluminum powder-coated with fine structure, separating attachment: smooth.
Size MINI Prices incl. VAT (19%):
In the color combination
Housing grey, divider attachment grey:
Easy: €1.449,00
Surcharge for left-hand crank: +€50.00
Size XS prices incl. VAT (19%):
In the color combination
Housing grey, divider attachment grey:
Easy: €1.460,00
Surcharge for left-hand crank: +€50.00

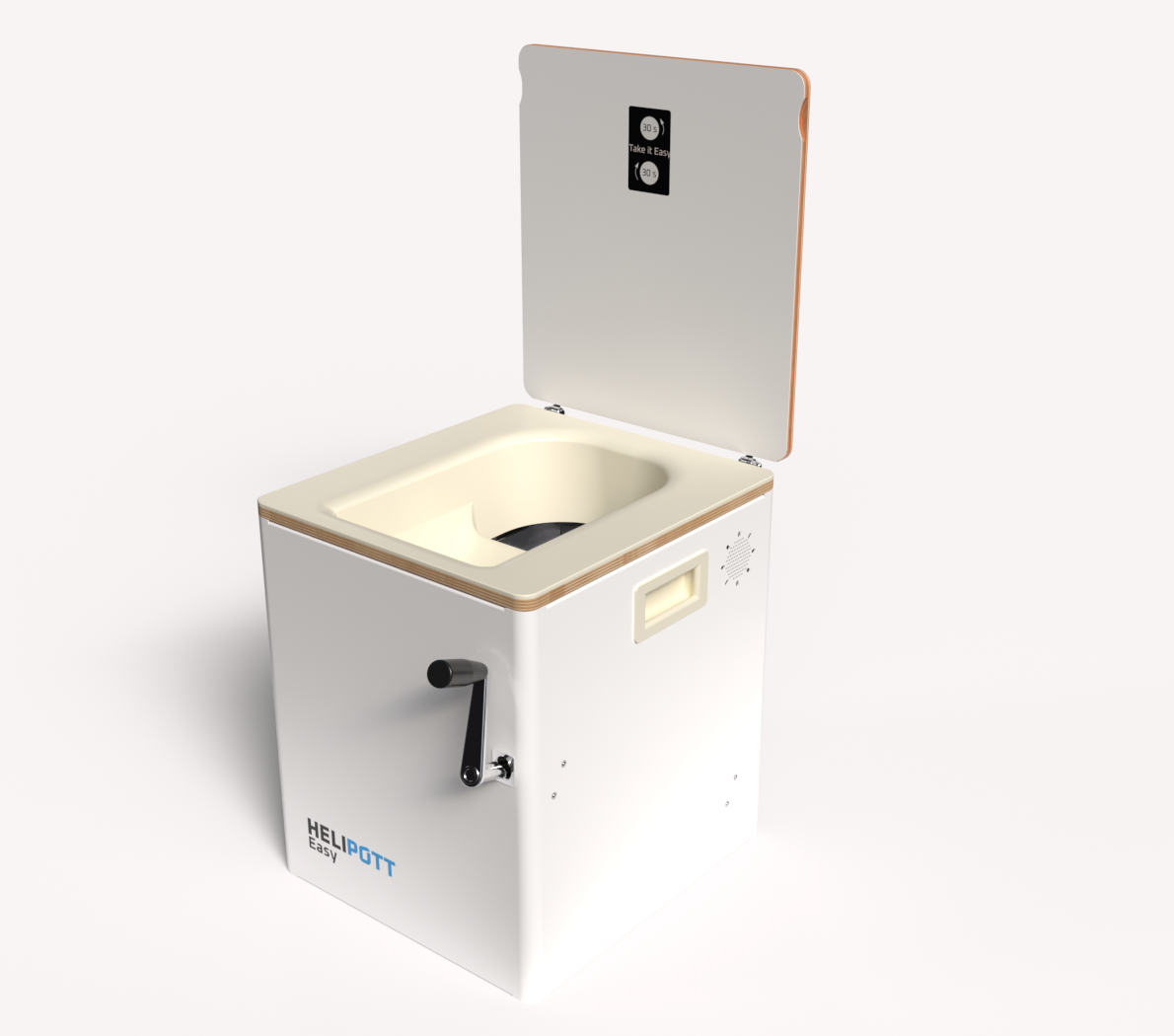

EASY Size M
External dimensions W/H/D 370/446/410mm (see details INFO>Technical Information)
Urine tank size: approx. 10L, agitator size: approx. 6L usable volume, no electricity required. Operated via removable hand crank.
Right-hand crank standard, left-hand crank available upon separate request..
Housing: aluminum powder-coated with fine structure, separating attachment: smooth.
Size M Prices incl. VAT (19%):
In the color combination
Housing grey/white, divider attachment grey/white:
Easy: 1.725,00€
Surcharge for left-hand crank:
+€50.00
Equipment
Exhaust kit
Our exhaust kit for the D 50 fan (the fan is already installed in the E-Drive) fits perfectly onto the outer casing of the Helipott toilet and can be mounted on three different sides of the casing (left, right, rear) and at various angles. This ensures you can always find the best position. The internal fan is simply repositioned accordingly.
The kit consists of two 50/32 angle flanges, a PVC exhaust hose, a ventilation grille for the exterior wall of the vehicle/house, and two matching hose clamps with wing nuts. This allows for easy attachment and removal of the ventilation hose as needed – even without tools.
Exhaust kit prices incl. VAT (19%):
Kit with 1m hose length: €65.00
Kit with 2m hose length: €65.00
Off-road package
If you book this package, you will receive an off-road-ready helicopter that is equipped for any situation.
Our off-road package is custom-made to fit the base model perfectly and can therefore be used with any size. It consists of a sturdy metal lid that is placed on the open mixing bowl. By folding down the separator and closing the main lid with the toggle latches, this intermediate plate is pressed onto the top opening of the mixing bowl, preventing any substrate from falling out.
You close the urine tank during the journey with the lid without a hole/odor trap.
Off-road package prices incl. VAT (19%):
Pre-assembled on the housing at the factory:
for XS, S and M: €86.00
For L: €98.00
For self-assembly:
For XS, S and M: €54.00
For L: €64.00
Coconut gel 8L
With the appropriate coconut substrate, you can fill your Helipott right away.
Simply soak a coconut brick in a small amount of water and add the finished substrate to the solids container.
Do not overcrowdThe tips of the stirring blades should still be visible.
We recommend dissolving the brick as dry as possible, as this significantly increases its absorbency. For an 8-liter brick, this is easily achieved with 0.6-0.7 liters of water. Ideally, place the brick and water in a bag, let it soak, and then knead the mixture. You can reuse the bag.
If you buy your coconut substrate elsewhere, make sure that it contains as little fertilizer and nutrients as possible. These usually have unpleasant odors.
Coconut bricks 8L Prices incl. VAT (19%):
Bricks, 8L, individually: 3.50€
Bricks, 8L, 10 pcs: €28.00
12V plug
For quick installation in a camper or when using a voltage converter (230V to 12V), there is the classic plug for the cigarette lighter socket.
We can also install it on your ordered Helipott, free of charge and pre-assembled.
12V plug prices incl. VAT (19%):
Free and pre-assembled when ordering a Helipott: €0.00
Individually, e.g. as a spare part, no assembly required: €12.50
>>> Click here for the current stock assortment here
*Required fields
**Easy DIY exhaust kit consisting of: 2x flange adapters (50mm) compatible with the Helipott Easy housing. 1x white ventilation grille (50mm). 1x fan (50mm) with cable (1m) and switch (loose). 4x matching screws and nuts for mounting to the housing.
Information on the scope of delivery:
The E-Drive comes complete with: toilet with housing and separator, agitator, fan and electrical connection (2-core connection cable, optionally pre-installed with a cigarette lighter plug free of charge), urine canister with 2 screw caps (1x closed cap)
and
1x with odor seal in the lid), plastic spatula with holder for cleaning, coconut substrate for the initial filling. Fill the substrate up to the tips of the vertically positioned stirring blades.
Do not overcrowd, as otherwise optimal mixing cannot be guaranteed.
The E-Drive Magic also features an integrated fresh water tank with a capacity of approximately 1.5L, as well as a spray device.
The Helipott Easy comes with: Helipott Easy toilet with agitator and hand crank, urine canister with 2 screw caps (1x closed). and
1x with odor seal in the lid), plastic spatula with holder for cleaning, coconut substrate for the initial filling. Fill the substrate up to the tips of the vertically positioned stirring blades.
Do not overcrowd, as otherwise optimal mixing cannot be guaranteed. The Easy exhaust self-assembly kit with fan, for self-installation, can be purchased separately for the Easy model.
